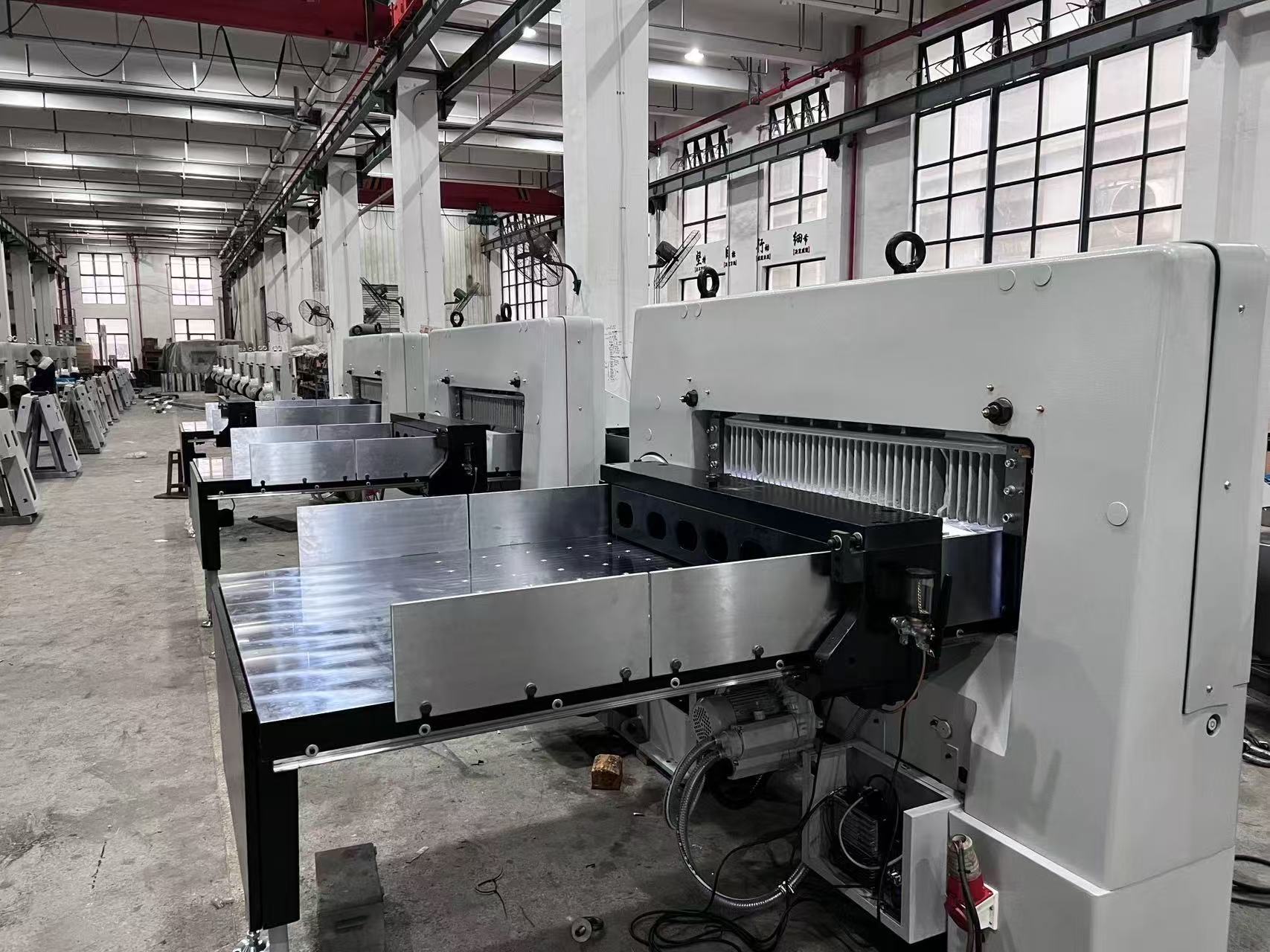

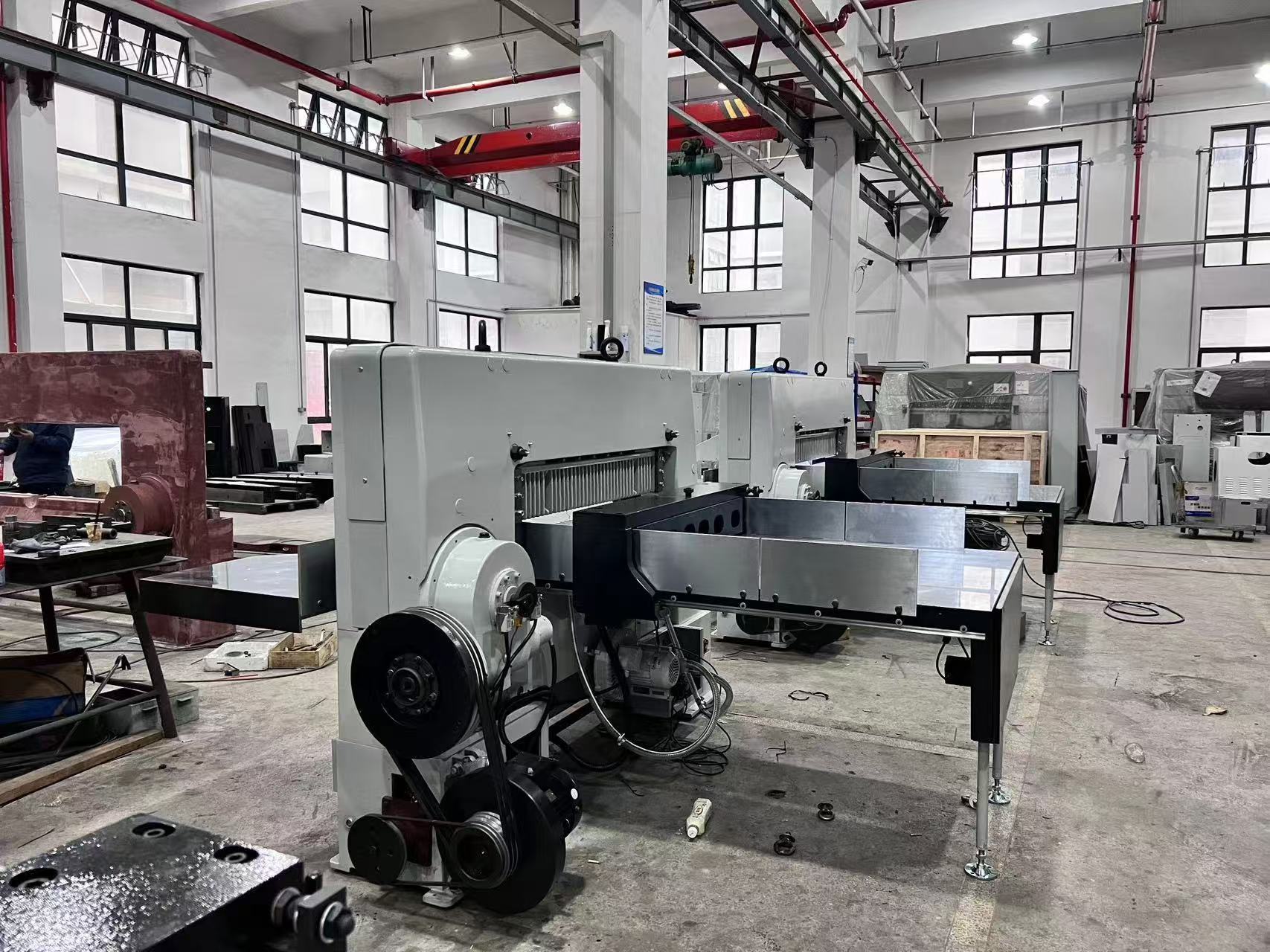

Offset Printing A1 Paper Sheet Cutting Machine
Double Hydraulic,4. Double Guide
Paper cutter is a commonly used equipment in printing, packaging and other industries. It is used to cut paper sheets, printing aluminum plates,plastic sheets and so on etc.
The selection of paper cutter mainly depends on the specifications and processing requirements of the paper to be cut.
According to different cutting length and thickness range, paper cutters can be divided into three types: large, medium and small.
Large paper cutter is suitable for cutting large-format paper into small-format paper, such as prints, posters, etc.
Medium-sized paper cutter is suitable for cutting medium-format paper into small-format or different-shaped paper, such as business cards, stickers, etc.
Small paper cutters are suitable for fine-tuning or trimming small-format papers, such as photos, documents, etc.
In addition to cutting length and thickness range, cutting precision and degree of automation should also be considered. Cutting precision refers to whether the cut paper conforms to the preset size and shape, and whether it is smooth and without burrs.
High-precision paper cutting machines can improve the quality and effect of subsequent use. The degree of automation refers to whether the paper cutter has automatic paper feeding, coding, stacking and other functions to reduce manual operations and errors.

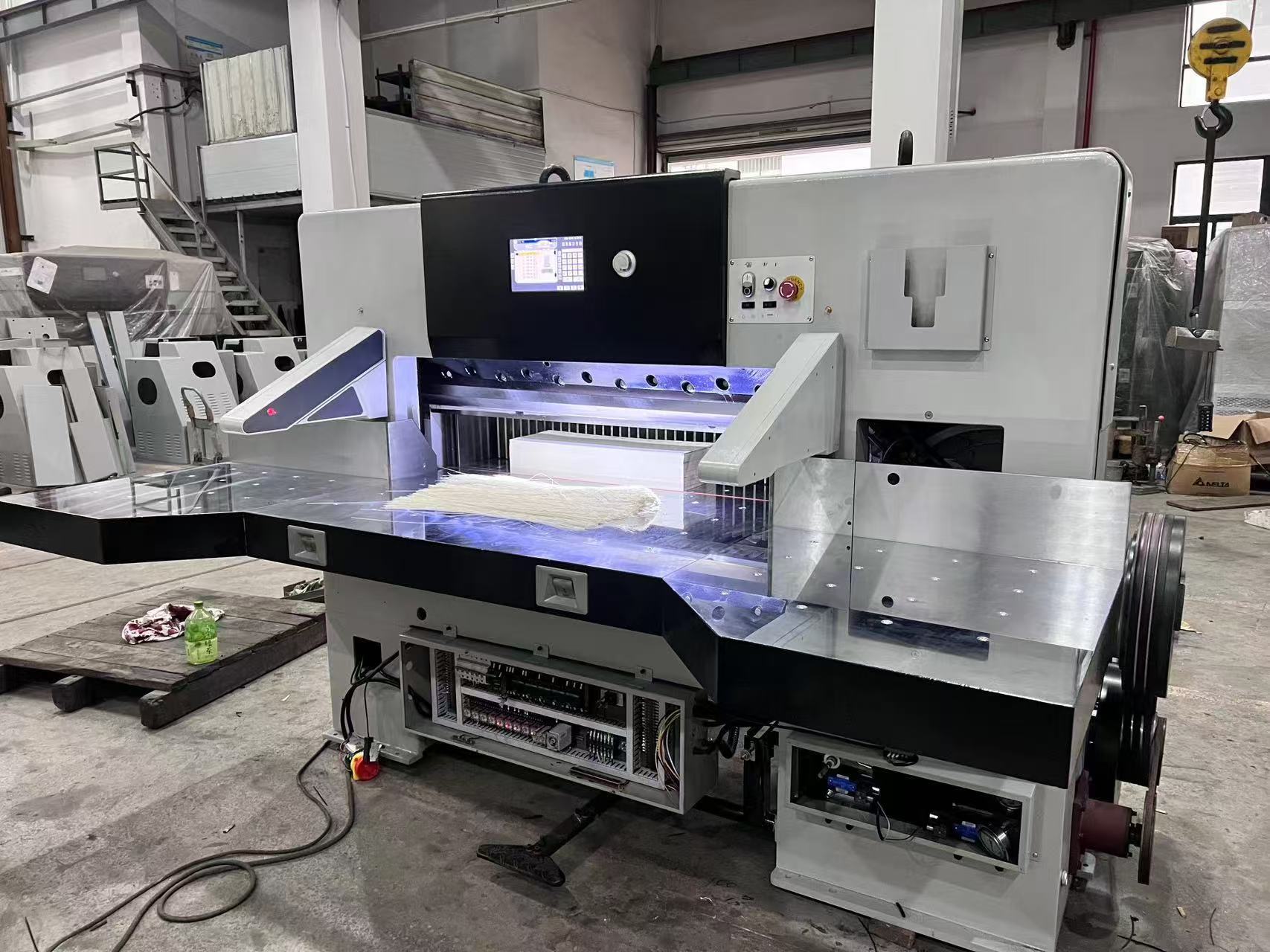

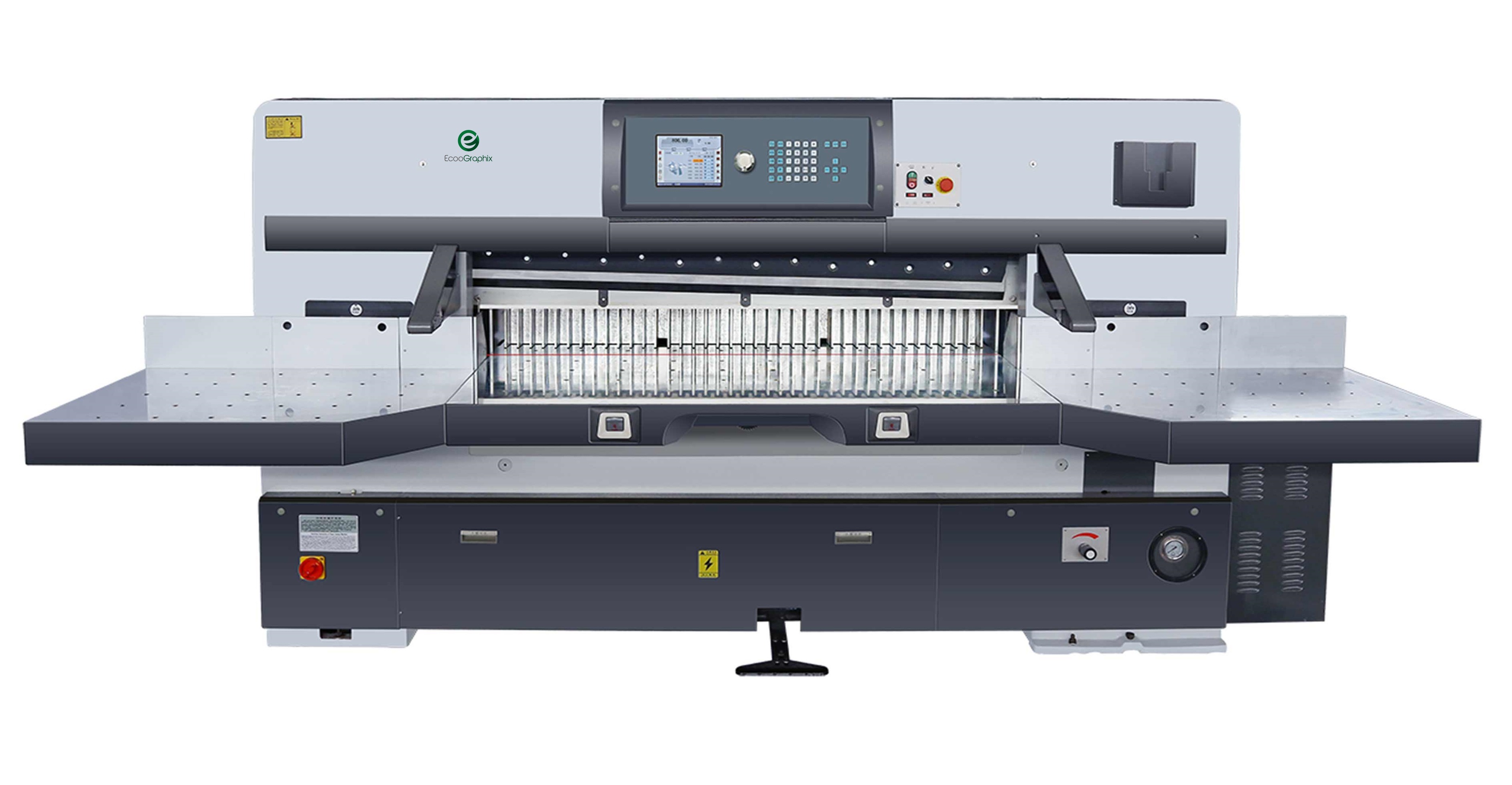

Ecoo 1150DH is the automatic double hydraulic , double guide paper cutting machine, mainly for A1/B1 sheets.
Features:
1. Usage: Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.
2. COMPUTER: it adopts 10 inch touch screen, color liquid crystal touch screen. It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction and do self-protection while wrong operation.
3. Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
4. Double Guide Device: the paper pusher adopts double imported linear guide and roller ball screw., which can prolong the machine use life, and can bear the high speed paper delivering.
5. Photo cell: it is equipped with a photo cell safety protection device.
6. Over load protection device; convenient knife changing device.
7. Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
8. Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
9. Cutting controller: both of the user’s hands operate the machine. It can cut paper in one time.
10. Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
11. Main electric device are imported from Germany, French, Japan, etc.
Specification:
| Model |
ECOO1150DH |
| Screen size |
10.4" |
| Max. Cutting Size(mm) |
Width 1150mm/45.3in; Length 1160mm/45.7in; Height 165mm/6.5in |
| Power Supply |
365-395V |
| Backgauge speed on return way |
150- 300 mm/sec, 11.81 in/sec |
| Cutting speed |
45 cycles/min |
| Without false plate |
25 mm/ 0.98 in |
| With false plate |
95 mm/ 3.74 in |
| Clamp pressure |
150 daN/ 331 lbs up to 40000N /9,921lbs |
| Main Motor |
4kw |
| Weight |
3300kg |
| Dimension |
2670*2610*1630mm |
|
Packing Size
|
260×154×203(cm) |
