5000 Cycles/H Book Binding Machine

1 set
5000 Cycles/H Book Binding Machine
Features Gallery Product Description Request A Quote
Number Of Clamps: 15
Max. Mechanical Speed: 5000 Cycle/hour
Book Block Length: 140-460 Mm
Book Block Width: 120-270mm
Book Block Thickness: 3-50mm
Cover Length: 140-470mm
Cover Width: 250-640mm
High Light:

5000 Cycles/H Book Binding Machine


55kw Book Binding Machine


Brochures Book Glue Binding machine

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO, CE, SGS
Model Number: Challenger 5000
Payment & Shipping Terms
Packaging Details: wooden case, standard exporting package
Delivery Time: 40-55 days
Payment Terms: L/C, T/T
Supply Ability: 200 set per year
Product Description

Challenger-5000 High-efficient Glue Book Binding Machine system for Books and Brochures Production


Background information

Exquisite paperbacks, journals, business reports and other printed materials based on the perfect binding technology has become an important role in our work and life. However, the demographic dividend in the printing industry has disappeared; printing companies are increasingly putting emphasis on the automation and productivity of their machines. In addition, customers’ requirement for product quality is constantly increasing. Therefore, efficiency and quality has become the great concern of every entrepreneur in the printing industry.


In such a backdrop, based on customer needs, We EcooGraphix developed a series of adhesive binding solutions that integrate efficiency and high quality, by relying on a strong R & D team and the integration of top-class technologies. Despite of the demanding requirements of customers, our adhesive binding solution can still ensure that you will achieve impeccable binding quality and efficient and stable production. After realizing the lean post-printing solutions, you will be able to enjoy the competitive advantage brought by the strong productivity!


5000 Cycles/H Book Binding Machine 0


Brief Description

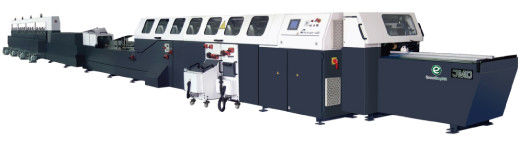

With a 15 clamp binder and speed up to 5000 cycles per hour, Challenger features manual function and operational convenience at an economical price. The 15-clamp perfect binder Challenger-5000 is an ideal choice for small to medium production runs with speed up to 5000 cycles/hour. It features easy operation and precise change-over by position indicators.


Model Book Binding machine
No. of Clamps 15
Max. Mechanical Speed 5000 cycles/h
Book block Length 140 – 460 mm
Book block Width 120 – 270 mm
Book block thickness 3 – 50mm
Cover length 140 – 470 mm
Cover width 250 – 640 mm
Power required 55 kw
Machine weight 5800 KG
Machine Dimensions 9950 x 1900 x 1500 mm



High net output

Reliable binding quality

Easy operation

Precise adjustment with position indicators


Installation in other customer places for your reference

5000 Cycles/H Book Binding Machine 1

Factory and certificate

5000 Cycles/H Book Binding Machine 2

5000 Cycles/H Book Binding Machine 3


1. Payment term?

(1) Down payment 40% of the total payment shall be made by T/T once order is confirmed and the balance shall be paid by T/T before delivery.

       (2) Payment can be made in USD at the then current exchange rate.

2. Installation and after service?

Conditional and prior to mutual agreement between the seller and the buyer.

3. Warranty?

12 months from the date of arrival at the port of destination. Damages caused by faulty operation do not fall under warranty wear and tears parts are not under warranty.

4. Package?

Seaworthy packaging (vacuum packed with aluminum foil in wooden cases).
