Close Cell Compressible 1.1μM Offset Printing Rubber Blanket

50 sqm
MOQ
Negotiable
Price
Close Cell Compressible 1.1μM Offset Printing Rubber Blanket
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Air Blanket
Structure: Close Cell Compressible Layer
High Light:

1.1μm Offset Printing Rubber Blanket

,

Compressible Offset Printing Rubber Blanket

,

3 Ply Press Rubber Blanket

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE, ISO
Model Number: ECOO-BL-M
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sqm per year
Product Description

Compressible Rubber Blanket for Offset Printing Machine

Press rubber blanket

Printing material rubber blanket

Printing consumed blanket



Model ECOO-BL-M
Construction 3 ply fabric
Thickness 1.97/1.70±0.02mm
Color Blue/Green
Compressible Microspheres
Surface Micro-ground and polished
Roughness 0.9-1.1μm
Hardness 76-80
Elongation ≤1.2%
Tensile strength ≥80
Suitable Printing Segment Publishing, Packaging, Plastic, and Metal Printing



Application

Strong universality

Appropriate to dot and word printing

Speed about 10000 prints/hour



Technical data

Model: ECOO-BL-M

Construction: 3 plys

Thickness: 1.97/1.70±0.02nm

Color: Blue/green/red

Compressible: Microspheres

Surface: Micro-ground and polished

Roughness: 0.9-1.1μm

Hardness: 76-80

Elongation: ≤1.2%

Tensile Strength: ≥80

Suitable Printing Segment: Publishing, Packaging, Plastic, and Metal Printing

Application: Strong universality, Prefer to package print

Speed capability: 10000 round/hour

Characteristic: Moderate compressible avoids moving image of machine and reduces the edge marking: Wide-range print. Prefer to carton print and full mold print

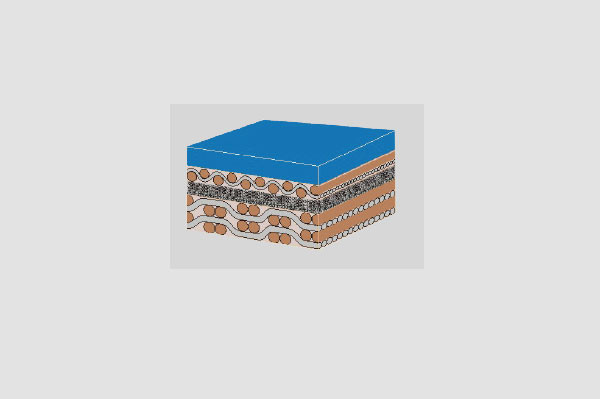

Structure

The printing blanket normally includes 3 layers as below:

  1. a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder,
  2. a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores
  3. an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.

Close Cell Compressible 1.1μM Offset Printing Rubber Blanket 0



About bar

We can offer blanket with or without bar, depending on customers’inquiry. $5 will be surcharged for each pair of bars. Please let us know the machine model or bar size if you need blanket with bar.
