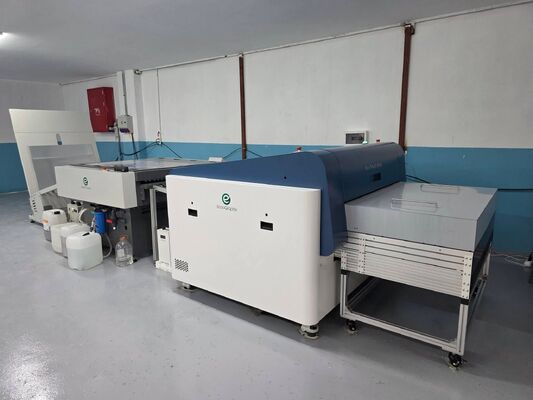

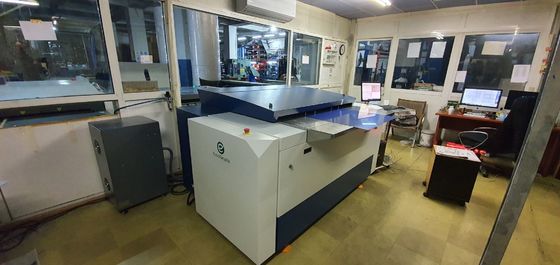

35 Plates Per Hour Thermal CTP Machine with 2400dpi Resolution and Autoloader for Prepress Printing

1SET
MOQ
Negotiable
Price
35 Plates Per Hour Thermal CTP Machine with 2400dpi Resolution and Autoloader for Prepress Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Resolution: 2400dpi,1200dpi Optional
Plate Thickness: 0.15-0.40mm
Max Plate Size: 1163*940mm
Output Speed: Up To 55 Plates Per Hour
Image Laser Diodes: 64,48,32CH 256CH
Laser Wavelength: 830nm
Highlight:

64 channel ctp equipment

,

automatic ctp platesetter
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: T800FA
Document: High Speed Thermal CTP T-80...ix.pdf
Payment & Shipping Terms
Packaging Details: Standard Exporting Packing with Plywood Case
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 500SETS
Product Description
35PPH Prepress Commercial Printing Thermal CTP Machine with Autoloader
Advanced thermal CTP machine designed for prepress commercial and newspaper printing applications, featuring automated loading and high-throughput performance.
Technical Specifications
Model EcooSetter T-800QF Automatic CTP
Laser Wavelength 830nm
Plate Compatibility 830nm thermal plate
Exposing Method External Drum
Imaging System 256-channel
Throughput 35 plates per hour (1030mm x 800mm at 2400dpi)
Plate Size Max. 1163x940mm, Min. 400x300mm
Plate Thickness 0.15mm to 0.3mm
Resolutions 2,400dpi, 1200dpi optional
Repeatability ±5μm (continuous exposing for four times or above at 23ºC and 60% humidity)
Interface USB 2.0
Weight 1200KG
Dimensions 2127×1405×1058mm (W×D×H)
Power Supply Single-phase: 220AC +6%, -10%; Power Consumption: 4KW
Operating Environment Recommended: 21-25ºC, Max. 18-26ºC, Humidity: 40-70%
Model Comparison
Model Series UV-800XA UV-800FA UV-800SA UV-800EA T-800XA T-800FA T-800SA/EA
Exposing Method External Drum
Imaging System 128-channel 64-channel 48-channel 32-channel 256-channel 64-channel 48/32-channel
Laser Type Discrete 400-410nm laser diode Discrete 830nm laser diode
Throughput 44 PPH 28 PPH 22 PPH 16 PPH 40 PPH 28 PPH 22/16 PPH
Media Type Positive UV-CTP plate, high-sensitive PS plate Positive thermal CTP plate
EcooSetter T-800QF CTP Machine front view
EcooSetter T-800QF CTP Machine side view
EcooSetter T-800QF CTP Machine control panel
Key Features & Benefits
  • Superior Dot Quality: 1%-99% dot reproduction, up to 250lpi screening with 2400 dpi or 1200dpi resolution options
  • Full Plate Compatibility: Qualified for any thermal non-process and process plates
  • Robust & User-Friendly Design: Simple operation with design that minimizes human error
  • Premium Components: World-class parts from internationally recognized suppliers in Japan, USA, and Germany
  • Extended Component Life: Laser diodes lifetime exceeding 10,000 imaging hours (approximately 200,000 plates)
  • Comprehensive Warranty: 3-year warranty with free replacement of all parts
  • Cost-Effective Maintenance: Very low cost of parts after warranty period (e.g., laser diode at US$250)
  • Professional Service Support: Factory engineer installation and training, regular remote maintenance, proactive revisits, and 7x24 hour service response
Global Market Presence
Over 6000 units installed worldwide in the past 10 years, with significant installations in:
  • USA and Canada: Over 50 units installed in last 3 years by leading US press manufacturer
  • Turkey: 35 units installed by Esen Graphics
  • Additional installations in UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria, and more
Manufacturing Facility
EcooGraphix manufacturing facility and factory
Partners & Customers
EcooGraphix global partners and customer network
Frequently Asked Questions
What are your main products?
EcooGraphix is a leading professional supplier for Offset Prepress solutions, also supplying Printing Materials and Postpress Packing Equipment. Our main products include Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, blankets, and postpress packing equipment.
Where is your factory located?
Our CTP machine factory is located in Hangzhou city, approximately 1.5 hours by train from Shanghai. We warmly welcome visitors to our facility.
What is your warranty for the CTP machines?
Three years warranty for Laser Head and main spare parts for CTPs, one year for Processors. When customers use EcooGraphix CTP plates with our machines, we provide Lifetime Warranty and technical support.
What is the lead time for delivery?
Typically 10-30 days, with every effort made to accommodate customer requirements.
Can you supply Workflow and RIP software?
Yes, we provide Workflow Brain New and RIP Compose V12 software solutions.
What about installation and after-sales technical support?
Our engineers provide installation assistance and necessary training. Buyers are responsible for round-trip air tickets, service charges, and local accommodation costs. We offer 7x24 hour support for any questions or problems.
Note: All specifications and features are subject to change without notice. Please contact us for the most current product information.
