High cost-effectiveness Environment-friendly printing sheet-fed ink
Our factory
We are an ink manufacturer with factory in Shanghai. We have long history and stable production. 60% are sold to Chinsese printing houses and 40% exporting to many countries, covering many grades. We recommend ECOO-F, which has highest cost-effectibeness as its favourable price and stable performance
Technical data
| Type | ECOO-INK-F |
| Printing speed | 8,000rph-10,000rph |
| Packing | 1 kg/2.5 kg per tin, 12tins/ 6 tins per carton |
| Shelf Life | 3 years (from the production date); product against light and water |
| Appearance | Colored paste |
| ITEM/TYPE |
TACK VALUE |
FLUIDITY (mm) |
PARTICLE SIZE (μm) |
SETTING TIME (min) |
DRYING TIME (hr) |
SKINNING TIME (hr) |
|
F YELLOW |
6-7 |
35±1
|
15 | 4 | < 10 | >15 |
|
F MAGENTA |
5.5-6.5 |
34±1
|
15 | 4 | < 10 | >15 |
|
F CYAN |
6.5-7.5 |
35±1
|
15 | 4 | < 10 | >15 |
|
F BLACK |
7-8 |
35±1
|
15 | 4 | < 10 | >15 |
| Tack Value | The value is measured in 1 minute by inkometer at 32℃ and 400rpm. | |||||
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc | |||||
| Condition of test | Room temperature 25℃, humidity 65%-75% | |||||

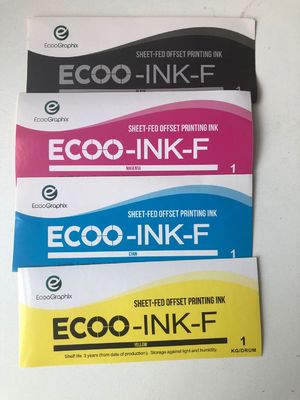

Package of our ink
The normal package is in aluminum can per 1 kg or 2.5 kg, vacuumed to secure tightly sealing and safe transportation. 6 drums or 12 drums packed in a carton which has partition board to protect and fix each drum from collision. It is standard package with enough protective layers and reasonable design.
Certifications
EcooGraphix series Printing Inks have passed the China environmental label product certification (ten central certification), ISO9001 quality management system, ISO14001 environmental protection system certification, ROHS certification and REACH certification, American ASTM, CPSIA and other related safety testing and certification, and the SONY SGS certification.
Features
Environment friendly
Anti-skinning performance
Good water/ink balance
Rich in printing layer
Clear and complete in printing dots
Quick-drying performance, quick setting, quick turn
What to do for specific color requirements from customers?
Customers sometimes need ink in specific color or ink with specific characteristics, like drying speed, smell, resistance to fading, gloss. Customers please send us detailed ink sample or pantone no# so that we can produce carefully for you.
