Quick set Artpaper high soluble oil-based Offset Printing ink
ECOO-INK- F offset printing ink is developed at the latest European technology system, it is made from polymeric, high-soluble resin, new paste pigment.
This product is suitable for printing packaging, advertisement, label, high-quality brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for medium and high-speed printing.
Features
Environment friendly
Good water/ink balance
Rich in printing layer
Clear and complete in printing dots
Quick-drying performance, quick setting, quick turn
Application
ECOO-INK-F printing ink is suitable for printing packaging, advertisement, label, brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for single-color and multi-color printing.
Technical data
| Type | ECOO-INK-F |
| Printing speed | 8,000rph-10,000rph |
| Packing | 1 kg/2.5 kg per tin, 12tins/ 6 tins per carton |
| Shelf Life | 3 years (from the production date); product against light and water |
| Appearance | Colored paste |
| ITEM/TYPE |
TACK VALUE |
FLUIDITY (mm) |
PARTICLE SIZE (μm) |
SETTING TIME (min) |
DRYING TIME (hr) |
SKINNING TIME (hr) |
|
F YELLOW |
6-7 |
35±1
|
15 | 4 | < 10 | >15 |
|
F MAGENTA |
5.5-6.5 |
34±1
|
15 | 4 | < 10 | >15 |
|
F CYAN |
6.5-7.5 |
35±1
|
15 | 4 | < 10 | >15 |
|
F BLACK |
7-8 |
35±1
|
15 | 4 | < 10 | >15 |
| Tack Value | The value is measured in 1 minute by inkometer at 32℃ and 400rpm. | |||||
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc | |||||
| Condition of test | Room temperature 25℃, humidity 65%-75% | |||||

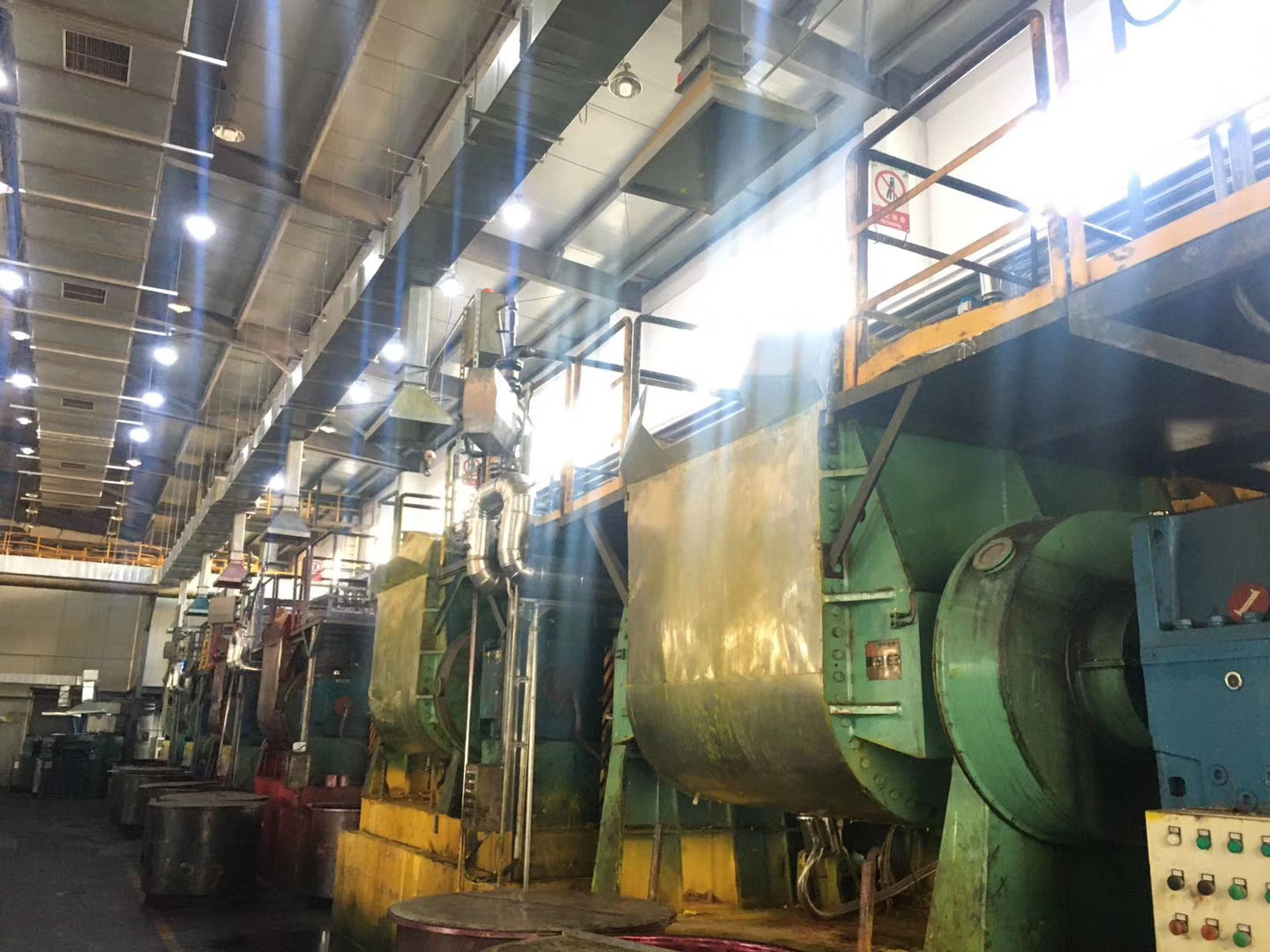

Our factory
Our factory located in Shanghai. It has two producing plant and independent oil producing line. The productivity reaches up to 4000000 tons. It is certified by ISO, Rohs. You can visit at any time.
What to do for specific color requirements from customers?
Customers sometimes need ink in specific color or ink with specific characteristics, like drying speed, smell, resistance to fading, gloss. Customers please send us detailed ink sample or pantone no# so that we can produce carefully for you.
How to storage offset printing ink?
The ideal process and storage temperature for offset inks is between 18℃-25℃. If the offset inks are too high in viscosity due to storing at low temperatures problems may occur by insufficient flow in the duct and picking at sensitive stocks. If the inks will be processed in higher temperatures, so because of low viscosity misting, ink/water problems or high sot gain may occur.
The ink cans have to be stored vertically standing under exclusion of daylight.
Tips before ink processing and after processing.
Do not judge the color of ink by the looking into the package only. All inks appear in thick layer n the container darker and dirtier as in the print. You may mistake the black to the blue or red.
You may find bubbles in the ink which is nitrogen mixed in producing to exclude oxidative drying problems. Do not worry, the bubbles will disappear on the rolls of the inking unit and will not lead to printing problems.
During longer print interruptions the rolls have to be cleaned and ink in the ink duct has to been sprayed on with antioxidant.
Remove skin whenever you find in the opened container regardless how small the skin is.
Inks which was mixed with printing aids should not filled backed to the original ink.
Package of our ink.
The normal package is in aluminum can per 1 kg or 2.5 kg, vacuumed to secure tightly sealing and safe transportation. 6 drums or 12 drums packed in a carton which has partition board to protect and fix each drum from collision. It is standard package with enough protective layers and reasonable design.
Other supporting chemistry in this procedure for your reference.
Roller wash.
Blanket wash
Spray powder.
