1.68mm 3ply Thickness Compressible Offset Printing Rubber Blanket

1SQM
MOQ
Negotiable
Price
1.68mm 3ply Thickness Compressible Offset Printing Rubber Blanket
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: ISO,SGS
Name: Offset Rubber Blanket
Thickness: 1.97/1.70±0.02mm
Construction: 3 Ply,4ply
Color: Blue/Green/pink
Packing: 25m/roll
Printing Speed: 9000-20000rph
Backside: 100%white Color Fabric
High Light:

1.68mm thickness offset rubber blanket

,

compressible offset printing blanket

,

1.68mm Thickness Offset Printing Rubber Blanket

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Model Number: ECOO-BL-E
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: about 20days
Payment Terms: T/T
Supply Ability: 100,000SQM
Product Description

1.68mm 3ply Offset Printing Rubber Blanket Compressible for coated paper printing



1. Application

EcooGraphix Printing Blanket is suitable for printing of coated papers, carton boards and the like. So the finish products of whole offset printing would be carton, coated paper, newspaper, magazine, and so on.



2. Characteristic

1) High cost-effective. Our most economic blanket model as well as most popular seller. Could satisfy 85% printing jobs.

2) High compressive ability, which allows many types and printing material in different thickness.

3) Wide range printing, prefer package printing on carton in moderate speed,speed about 9000 prints/hour.

4) Be excellent in the action of absorbing a shock such as a mechanical impact.

5) Prevent the material to be printed from winding around the blanket cylinder.



3.Structure

The printing blanket normally includes 3 layers as below:

A: a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder,

B: a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores

C: an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.



4. Specifications



Model ECOO-BL-E
Construction 3 ply/4ply
Thickness 1.97/1.70±0.02mm
Color Blue
Compressible Microspheres
Surface Micro-ground and polished
Roughness 0.9-1.1μm
Hardness 76-80
Elongation ≤1.2%
Tensile strength ≥80



Application

Strong universality

Prefer to package print

Speed about 9000 prints/hour

Characteristic Moderate compressible avoids moving image of machine and reduces the edge marking. Wide-ranging print. Prefer to carton print and full mold print



5. Maintenance

  • Clean the blanket with fast volatile organic solvents
  • Clean rolls when ink color changing or refilling
  • Release the blanket off the cylinder when the printing machine stopped for a long time
  • New blankets should be stored in dry and cool place covered with dark layer.



6. Other supporting consumables for your reference

Blanket wash ;Roller wash ; Rolls in any dimension

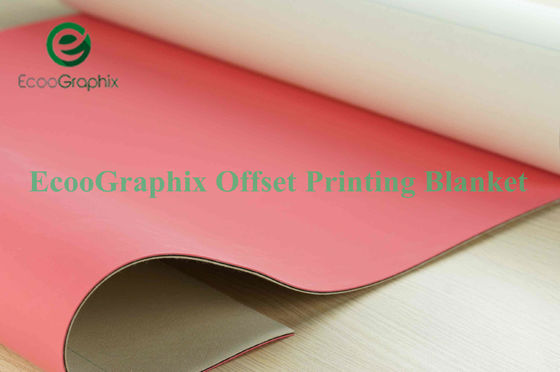

1.68mm 3ply Thickness Compressible Offset Printing Rubber Blanket 0

1.68mm 3ply Thickness Compressible Offset Printing Rubber Blanket 1
1.68mm 3ply Thickness Compressible Offset Printing Rubber Blanket 2
1.68mm 3ply Thickness Compressible Offset Printing Rubber Blanket 3

1.68mm 3ply Thickness Compressible Offset Printing Rubber Blanket 4



5. About Blanket Aluminum Bar

We can offer blanket with or without bar, depending on customers’ inquiry. $5 will be surcharged for each pair of bars. Please let us know the machine model or bar size if you need blanket with bars.



6. Dimension, Blanket Back printing, Package

We offer blanket in any sizes in sheet or in roll as below. The blankets will be rolled and packed in polymer bag and carton with enough protective layers. The customer can decide the content of back side, usually the logo or size.

1.68mm 3ply Thickness Compressible Offset Printing Rubber Blanket 5
