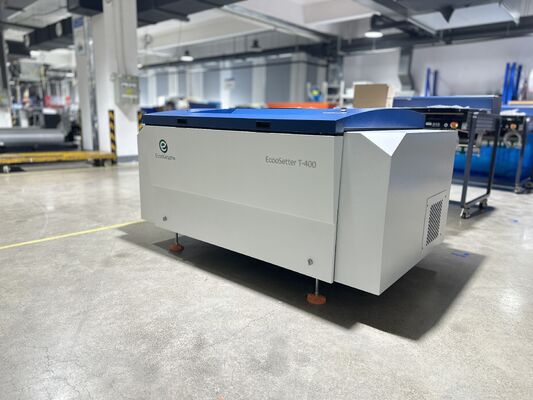

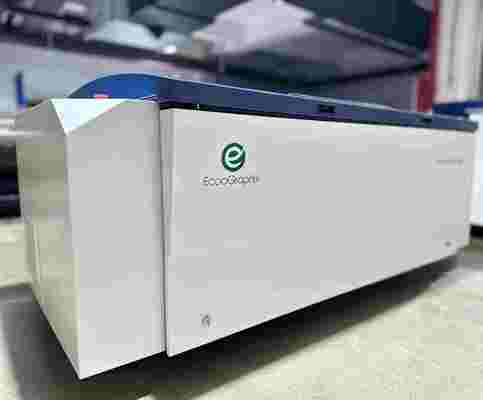

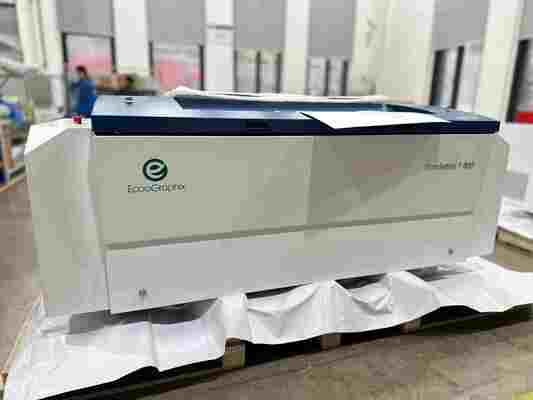

B2 Paper Offset Printing Prepress Thermal CTP Machine

B2 Paper Offset Printing Prepress Thermal CTP Machine
Features Gallery Product Description Request A Quote
Laser Channels: 48CH
Output Speed: 28pph
Max.Plate Size: 800X660(mm),Min.:260x300(mm)
Plate Loading And Unloading: Manual
Net Weight: 800KGS
Machine Size: 1900×1200×1000mm(W×D×H)
Warranty: 3years Or Lifetime
Exposing Method: External Drum
High Light:

b2 paper offset printing ctp equipment


thermal ctp plate making machine

Basic Infomation
Place of Origin: CHINA
Certification: CE
Model Number: T400F
Payment & Shipping Terms
Packaging Details: Standard export packing by plywood case
Delivery Time: about 20days
Payment Terms: L/C, T/T
Supply Ability: 300SET
Product Description
Prepress Thermal CTP Plate Making Machine for B2 Paper Size Offset Printing
Fast Speed,Cost Effective

1. Specification

Prodution Model: EcooSetter T-400F  Thermal CTP Platesetter
Laser wavelength: 830nm
Plate: Postive Thermal CTP Plate
Exposing Method: External Drum
Imaging System:48-channel
Throughput: 28 plates per hour, 800mmx660mm 2400dpi
Plate Size: Max. 800x660mm min. 260x300mm
Plate Thickness:0.15mm to 0.3mm
Repeatability:±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Power Supply:Single-phase: 220AC+6%,-10%;Power Consumption:4KW

Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%




2. Pre-installation Preparation for customers


  1) Customer should prepare tools:

Lift truck and driver: to unload the machine, truck fork should be 1.5Ton or above capacity, 1.2m or longer arm;


   2) CTP working environment:


Lighting: Natural illumination, no direct sunlight

Floor: The floor should bear the pressure of 500kg/m2. Anti-static floor or tile floor.

Ventilation: natural ventilation

Thermometer and hygrometer (pointer type or digital type) should be kept in the center of the room.


    3) Power supply:

CTP Ecoosetter Series: single phase, independently grounded, less than 3Ω; 50/60Hz, 4KVA.

An online uninterrupted power supply(UPS) unit is required, and the battery should be able to sustain at least 5 minute alone.


    4) Other equipment customer should prepare:

Computer: one computer is required to control the CTP. Configuration: I3 or above, 500G or above, Windows 7/8/10, English operation system (US);

Air: separated air-compressor or central air. ≥0.8Mpa, ≥175L/min. If separated air-compressor, the air tank should be ≥30L.


Plate and chemicals

Plate dot measurement tools (Replate or IC plate)



3. FAQ:
1. What are your main products ?

EcooGraphix is a professional Prepress solution ,printing materials ,Inkjet Printers and post packing equipment supplier in China.

Our main products are the Prepress Online/Offline Platesetters including Thermal CTP , CTCP , VLF CTP and Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipment,Inkjet Printers and so on.

Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.

2. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.

Lifetime Warranty for CTP machine and CTP plate.


3. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.


B2 Paper Offset Printing Prepress Thermal CTP Machine 0

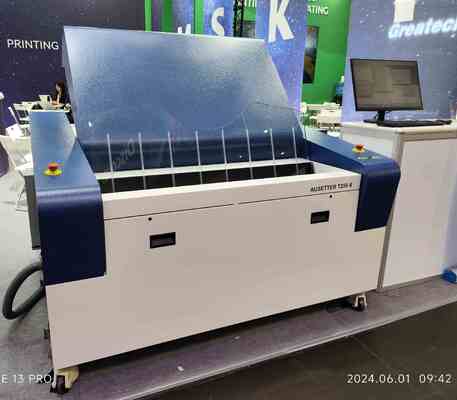

4. Other Similar Models:

EcooGraphix Offline Thermal CTP Specifications
Model T-800F T-800S T-800E T-400F T-400S T-400E
Exposing Mothod External Drum
Imaging System 64-channel 48-channel 32-channel 48-channel 32-channel 24-channel
  Discrete 830nm laser diode
Throughput 28plates/hour 22plates/hour 16plates/hour 28plates/hour 22plates/hour 16plates/hour
  1030mm x 800mm, 2400dpi 800mm x 660mm ,2400dpi
Plate Sizes Max.1163mm x 940mm
Min.300mm x 400mm
Max.800mm x 660mm
Min. 260mm x 300mm
Exposing Size Max.1163mm x 936mm
Min.260mm x 384mm
Max.800mm x 646mm
Min. 260mm x 284mm
Media Type positive 830nm thermal CTP plate
Plate Thickness 0.14mm to 0.30mm
Resolution 2400dpi
Repeatablity ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23 and humidity of 60%)
Interface USB 2.0
Plate Loading semi automatic
Net Weight 1200kg 800kg
Machine Size

2,127×1,610×1,058 mm( L×W×H )

Power Supply single phase:220AC,+ 6%,- 10%, power Consumption:4KW
recommended:21-25, Max.18-26, humidity:40-70%


5. Machine Technology:


B2 Paper Offset Printing Prepress Thermal CTP Machine 1


B2 Paper Offset Printing Prepress Thermal CTP Machine 2


6. Our Factory


From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .

B2 Paper Offset Printing Prepress Thermal CTP Machine 3

B2 Paper Offset Printing Prepress Thermal CTP Machine 4


7. Installations worldwide

B2 Paper Offset Printing Prepress Thermal CTP Machine 5
