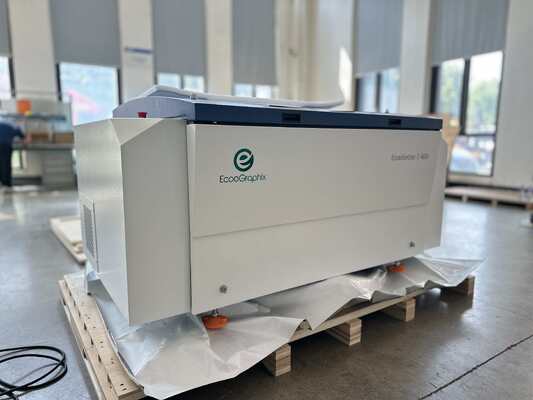

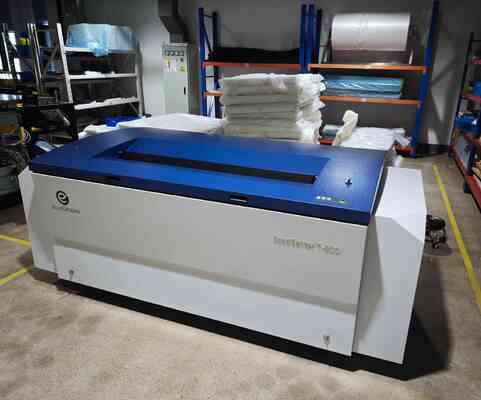

Prepress UV-CTP Plate Equipment Computer To Plate Machine with 800×690mm Max Plate Size 22 Plates Per Hour and 2400dpi Resolution

Prepress UV-CTP Plate Equipment Computer to Plate A2 4up CTCP Machine
for offset commercial or newspaper printing

1.Application
EcooGraphix Conventional CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.
EcooGraphix UV400series thermal CTP are for A2 or B2 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual,very easy to use.
By EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.

2.Characteristic
Maximum size of plate: 800×690mm
Features: Small Volume, high stability and perfect output quality.
UV plate and thermal plate are available for you to lower production cost.

1. Specification
Model: EcooSetter UV-400S CTcP
Laser wavelength: 400-410nm
Plate: UV plate, high-sensitive PS plate
Exposing Method: External Drum
Imaging System: 32-channel
Throughput: 22 plates per hour, 800mmx660mm 2400dpi
Plate Size: Max. 800x690mm min. 400x300mm
Plate Thickness:0.15mm to 0.3mm
Resolutions:2,400dpi, 1200dpi optional
Repeatability:±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface:USB2.0
Weight:800KG
Size:1900×1200×1000mm(W×D×H)
Power Supply:Single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%

2. Other Similar Models:

3. Major Highlights of EcooGraphixT-800 thermal CTP

• Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction
Up to 250lpi screening ,2400 dpi or 1200dpi optional

• Fully qualified: for any thermal non-process plate and process plates.
• Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.
• Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany
• Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
• Long warranty of the machine: 3 years warranty (free replacement of all parts)

Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.

• Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.
• Proven Worldwide market leader: (Some highlights installations)

Over 6000 units installed worldwide over past 10 years
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc.

4. Our Factory

Our Partners and Customers

FAQ:
Q1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
Q2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
Q3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
Lifetime Warranty for CTP machine and CTP plate.
