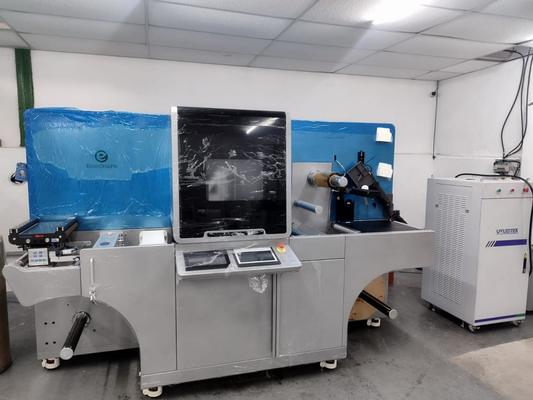

Digital Label Self Adhesive Sticker Washi Tape Cold Foiling Varnish Printing Machine
EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic processes such as digital varnishing, 3D crystal bright, partial glazing, cold foil stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.
Applications: Wine Labels, Cosmetic Labels, Luxury labels and so on.
1) Innovation and Intelligent Manufacturing
The label printing market is going through a transaction period where run lengths are becoming shorter and shorter, media costs are increasing, margins are shrinking and fast turnaround time to market is creating huge pressure on label printers. Here EcooGraphix &Winbosc bridges the gap between the end users, the brand owners and the label printers enabling them to print on demand.
EcooGraphix &Winbosc Printing Press tilizes the PiezoDOD inkjet print head technology that enables it to print high quality labels at 600*600 DPI native resolution at speeds up to 70m/min and up to 330 mm of print widths, delivering the expectations of a label printer in terms of lowest total cost of ownership and fastest return on investments.
Digital is the future, so is the Digital press, it comes with the power of printing short to medium runs very effectively and economically, additionally featuring great value of personalization, variable data and security printing in real time production at one go.
2 )The advantages of UV Inkjet Printing Press
● Initial proofing and instant response
● No reprographics and plate cost
● Reduced SKU's for brand owners & inventory for label printers
● Quick versioning of repeat jobs & minimum wastage in job changeover
● Easy upgradation on field & costly operations savings
● No click charges-Pay as per usage
● UV Ink - highly durable, chemical and moisture resistant
● Prints on standard Flexo materials, many without the need to pre-coatreatment
● Variable data printing
|UV Piezo DoD-inkjet
|up to 1440*360 dpi
|10m/min - 60m/min(depend on polymer layer thickness)
|Variable Image system
|PDF, optimized PDF, Optional barcode system
|Supported image standards
|PDF,PDF/VT,TIFF, JPEG, BMP & other data base files
|Offset, Digital, Plastics, Laminated and coated substrates
|Printing image width
|288mm (extendable to 330 mm)
|Polymer layer thickness
|From 10 up to 180 microns
|Inter UV-LED Pre-curing/Full curing by UV-LED
|Max. 700mm, Core 76mm
|Max. 700mm, Core 76mm
Press with Foil station
|Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz
Current: Avg. 25 Amps in Production
