Home /Products/Label Printing Machine/430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed

430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed

1SET
MOQ
Negotiable
Price
430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Resolution: Up To 1440*360 Dpi
Printing Speed: 10m/min - 60m/min
Variable Image System: PDF,Optional Barcode System
Materials: Coated Paper, PET Film,Washi Tape,art Paper
Warranty: One Year
Weight: 2800KGS
Applications: Wine Labels, Medical Labels,Washi Tape,Stickers
Print Width: 288mm To 330mm
Machine Functions: Digital Varnishing,Cold Foiling,Variable Data,Braille Printing
Certificate: CE,SGS
Highlight:

10m/Min Die Cutting Embossing Machine

,

Intelligent Die Cutting Embossing Machine

,

280mm Printing Die Cutting Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: EcooSpark
Document: Digital Label Cold Stamping...88.pdf
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 300SET
Product Description

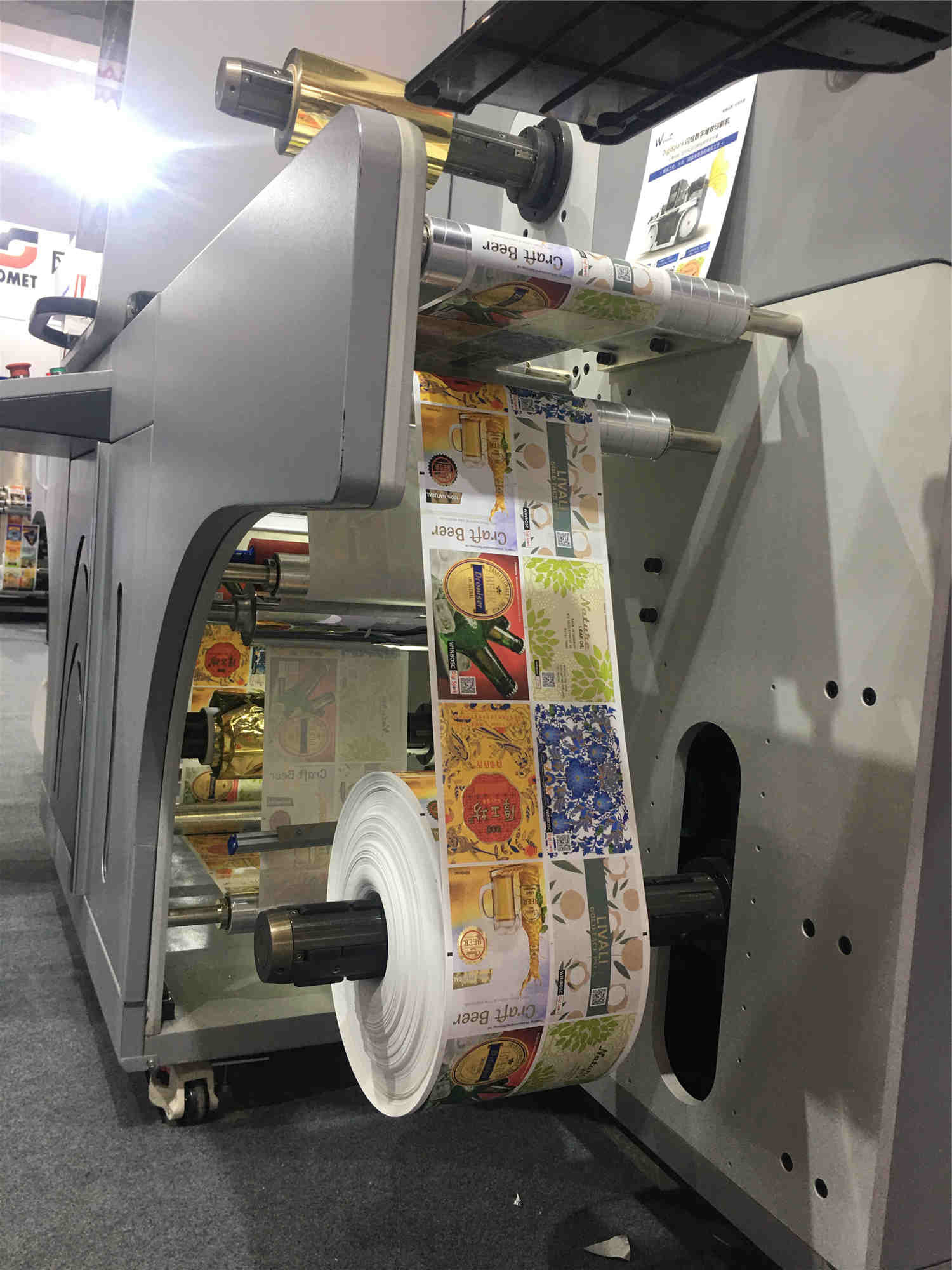

430mm Digital Label Braille Varnish Printing Cold Foiling Printer
Digital Rotary Label Cold Foiling Varnish Printing Machine
EcooSpark
EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic processes such as digital varnishing, 3D crystal bright, partial glazing, cold foil stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.
Applications
Wine Labels, Cosmetic Labels, Luxury labels and more.
Innovation and Intelligent Manufacturing
As the OEM factory of the post press finishing machine, EcooGraphix first introduced the Digital Roll Label Varnishing and Cold Foiling embellishment machine EcooSpark in 2018. There are about 50 units installed in many countries, with most machines operating trouble-free for 5 years.
The Advantages of EcooSpark UV Varnish Printing Press
  • Full Sets of Mitsubishi servers
  • HeFeng Corona Treatment
  • Web guide and Monitoring System: E+L
  • Full Led-UV curing system
  • Printing Software: GIS UK
  • Auto Cleaning System
  • KM 1024i print head
  • Multiple sensors for tension control
  • LED UV varnish - highly durable, chemical and moisture resistant
  • Prints on standard Flexo materials, many without the need for pre-coatreatment
  • Variable data printing
Technical Specifications
Model EcooSpark
Printing Technology UV Piezo DoD-inkjet
Resolution up to 1440*360 dpi
Printing speed 10m/min - 60m/min (depend on polymer layer thickness)
Variable Image system PDF, optimized PDF, Optional barcode system
Supported image standards PDF, PDF/VT, TIFF, JPEG, BMP & other data base files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing image width 288mm (extendable to 450 mm)
Polymer WB-DS-Clear Polymer
Polymer layer thickness From 10 up to 180 microns
Ink curing Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter Max. 700mm, Core 76mm
Rewinder diameter Max. 700mm, Core 76mm
Substrates thickness 30-400 micro
Substrates width 330mm
Press with Foil station dimensions (LxHxW) 3500mm x 1900mm x 1800mm
Operating environment Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical requirements Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz Current: Avg. 25 Amps in Production
Weight 2800kg
430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed 0 430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed 1 430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed 2 430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed 3 430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed 4 430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed 5 430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed 6 430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed 7 430mm Digital Label Printing Machine with 1440*360 dpi Resolution and 10m/min - 60m/min Speed 8
