Single Cassette High Automation CTP Plate Machine

1 set
MOQ
Negotiable
Price
Single Cassette High Automation CTP Plate Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Cassette Type: Single Cassette
Max. Plate Size: 1160mm*940mm
Plate Feeding Speed: 75 Plate/hour
Min. Plate Size: 510mm*400nn
Plate Loading Way: Manually Stack Plate Is Cassette
Plate Loading Quantity: 1 Cassette, 100 Pcs Totally
Dimension: 1617mm*1300mm*1222mm
High Light:

single cassette plate feeder

,

ctp autoloader

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO, CE, Rohs
Model Number: SCU 800
Payment & Shipping Terms
Packaging Details: wooden case with standard exporting package
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 1000 set per year
Product Description

Single Cassette CTP Autoloader Plate feeding machine


SCU 800 is a plate feeding machine, also known as autoloader, working together with our T800A & UV800A CTP series. It consists of 1 cassette and a feeding system. The 1 could hold 100 pcs of plate maximum.. The feeding system is highly automatic. It removes the plate liner paper and send the right plate to CTP inlet automatically. So this devise saves the labor force in prepress room greatly. It is a good choice for the busy printing line.



Specfications:

Mode SCU-800
Cassette Type Single cassette
Plate Feeding Speed 75 plates/hour
Plate Size Max. 1,160x940mm, Min.510x440mm
Plate Thickness 0.15mm-0.30mm
Interface RS 485
Plate Loading Way Manually stack plate in cassette or on loading platform
Plate Loading Quantity 100 sheets of plate (1 cassette)
Net Weight 190KG
Device Size 1,617x1,300x1,222mm (WxDxH)


Single Cassette High Automation CTP Plate Machine 0

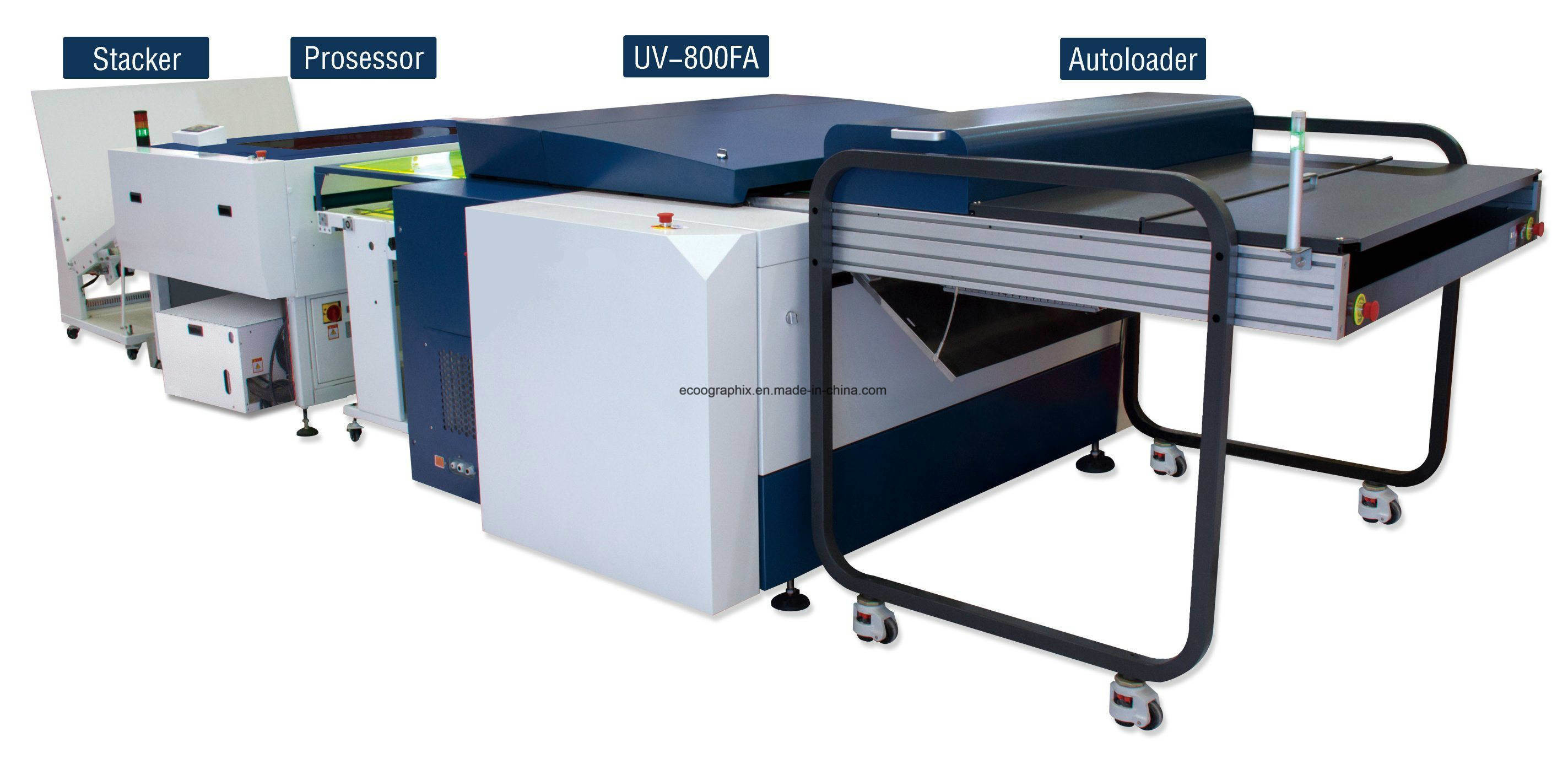

Below is full CTP producing line for your reference. This producing line includes an autoloader, CTP, bridge, processor and stacker. This is a highly automatic CTP line.

Single Cassette High Automation CTP Plate Machine 1



FAQ:
What are your main products ?
Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor ), and Post Press Packing equipments ( Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates ,inks , printing blankets ,Plate dot densimeter ) .
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.
Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor, autoloader and other  CTP supporting devices.
What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
