Home /Products/Label Printing Machine/216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed

216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed

1SET
MOQ
Negotiable
Price
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Resolution: 1200*600 Dpi
Printing Speed: 10m/min - 75m/min
Variable Image System: PDF,Optional Barcode System
Substrates: PET Film,Coated Paper, Synthetic Paper, Art Paper, Etc
Warranty: One Year
Weight: 2800KGS
Print Colors: CMYK/W+CMYK/W+W+CMYK
Highlight:

216mm Digital Label UV Press

,

1200*600 dpi Label Printing Machine

,

10m/min - 75m/min UV Inkjet Label Printer
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: Label Smart
Document: Digital Label UV Inkjet Pri...ix.pdf
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 300SET
Product Description
CMYK and White 216mm Digital Label UV Press
6 Colors Digital Label Machine UV Inkjet Label Printer
The Label Smart is an easy-to-operate entry-level digital label press offering low investment cost with high efficiency and effectiveness. This versatile machine handles a wide range of materials including films (PET, BOPP, PE, BOPA), label papers (PE label), pre-pressed materials (PET, ALU, PE), and various paper types, helping customers diversify their label market offerings.
The system features large roll feeding, anti-collision induction, web guide, double-sided dust removal, corona unit, mark tracking electric eye, LED curing, intelligent industrial control, and water cooling system. Equipped with imported high-precision industrial nozzles, it offers four-color configuration options to meet specific customer requirements.
With white ink configuration, the press achieves maximum full-color printing speeds of 50m/min at resolutions up to 600×1200dpi, delivering accurate, stable colors across various printing materials. Using Agfa environmentally friendly ink, it produces vibrant, odor-free prints.
Advantages of UV Inkjet Printing Press
  • 6-color digital printing covering 95% of Pantone colors
  • New upgraded design for simple operation
  • Fully automatic integrated program to improve efficiency
  • Built-in quality inspection device for real-time color inspection and quality control
  • Remote operation and maintenance support
  • Upgraded printing control software to optimize production process
Model Label Smart 108S Label Smart 216S Label Smart 330S
Printing Technology Piezoelectric Inkjet
Print Method Roll to Roll, One-Side
Color Configuration CMYK/W+CMYK/W+W+CMYK
Number Of Channels 6
Maximum Speed 50 m/min (CMYK); 25 m/min (CMYK + W)
Resolution 600×600dpi; 600×1200dpi
Ink Type UV Ink
Curing Method UV LED
Media Width 80-330mm
Maximum Print Width 108mm 216mm 324mm
Media Thickness 50-400 μm
Media Type PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
Maximum Media Roll Diameter 600mm
Power Supply 380V
Power 15kW 30kW
Compressed air
Compressed air ＞6.5MPa
Air consumption ＞10L/min
Environment
Operation Temperature 20 - 27°C
Operation Humidity 40 - 70% Relative humidity

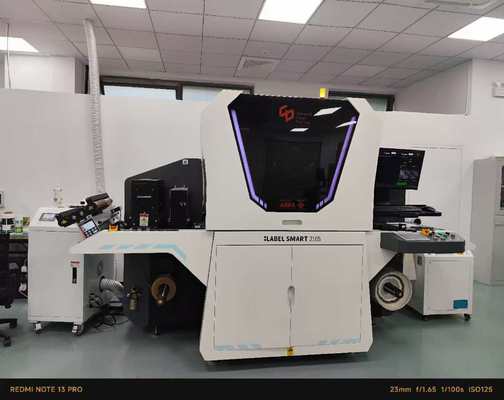

216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 0

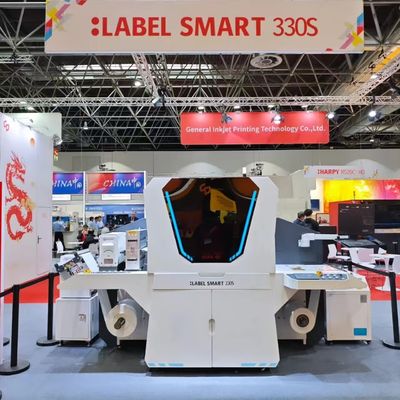

216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 1

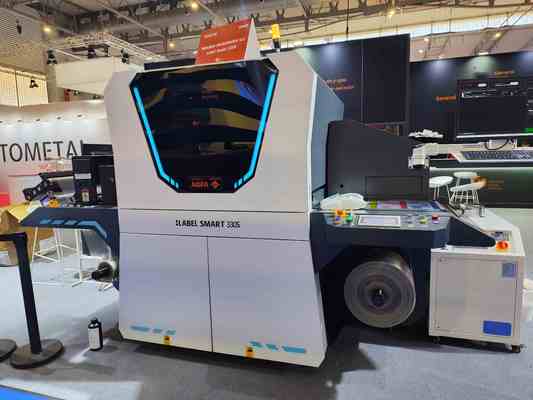

216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 2

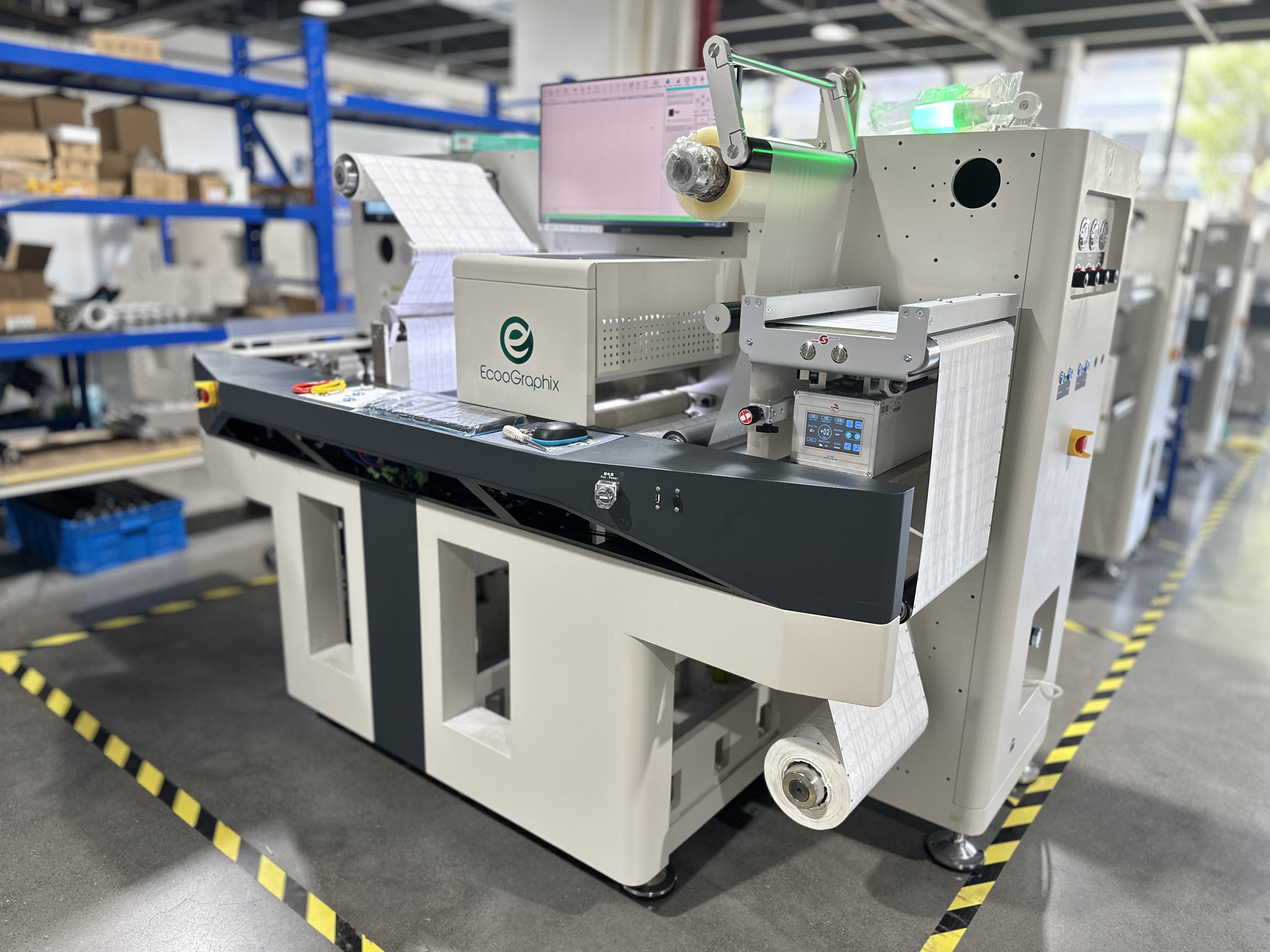

216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 3

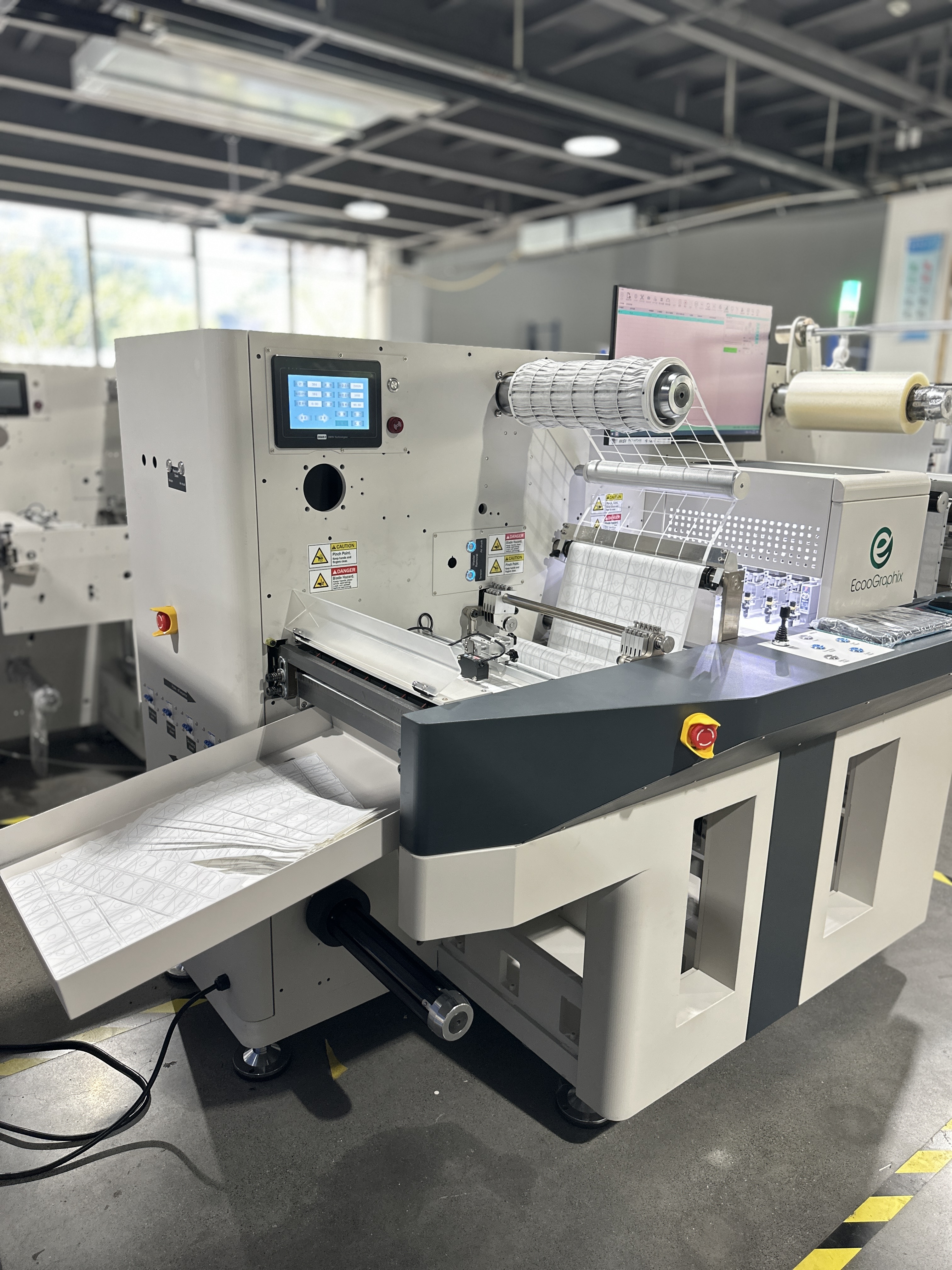

216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 4
Samples:
216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 5

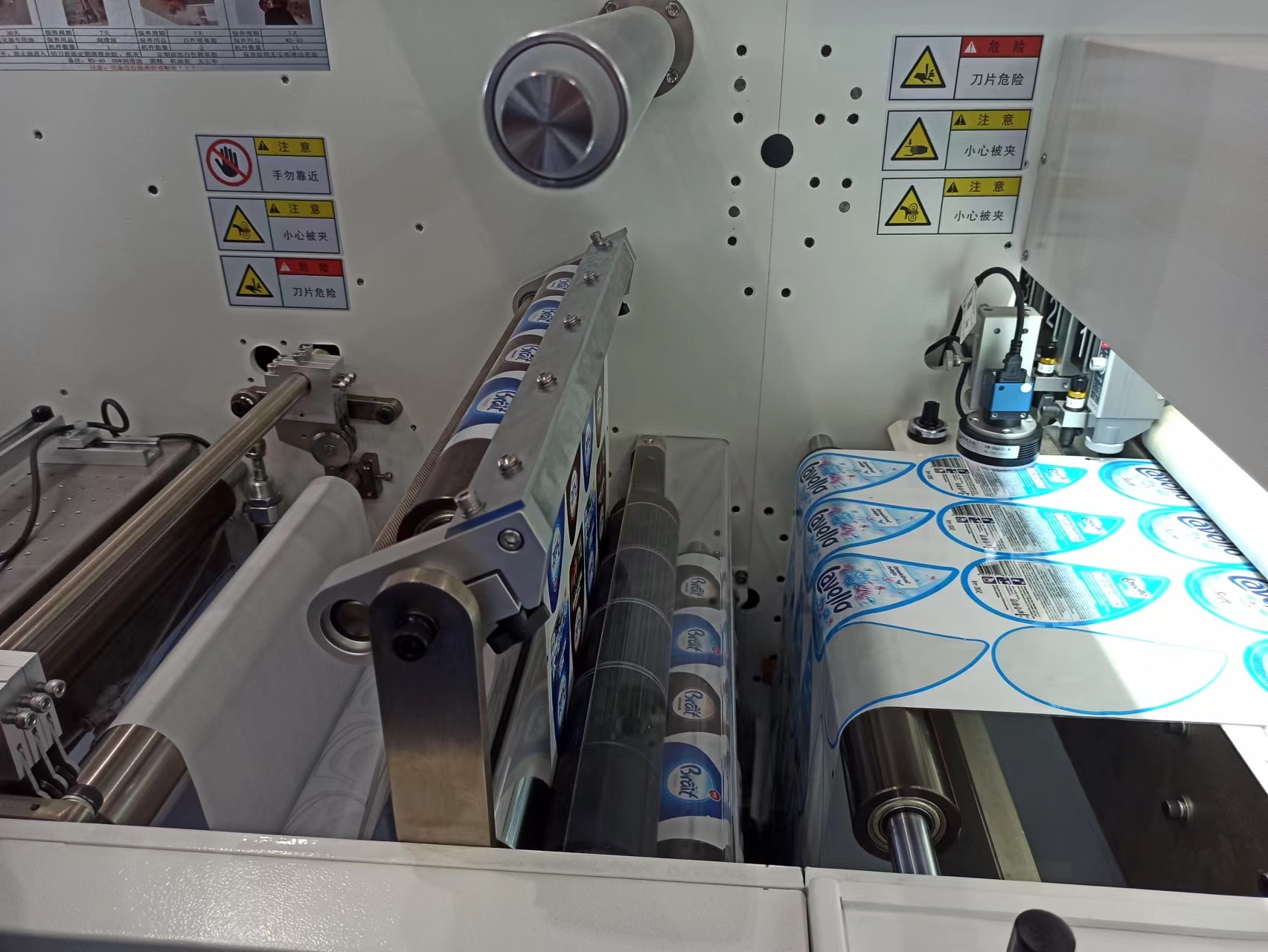

216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed 6
