Sheet Square Bottom Shopping Paper Bag Forming Machine with Handle Holes
EcooGraphix is a professional supplier of eco-friendly paper processing machines and paper products, dedicated to the mission of "Creating Value for Customers."
In the early 1990s, the production of snack boxes (such as ice cream paper cones, hamburger boxes, etc.) primarily relied on manual labor or machines imported from Europe and North America. However, these methods posed challenges such as poor sanitary conditions, inconsistent product quality, low efficiency, expensive imported machinery, long delivery, times, and high service costs, hindering the development of domestic paper production enterprises. Despite these obstacles, Chinese industries continued to grow rapidly, and Dayuan was determined to venture into this new industry.

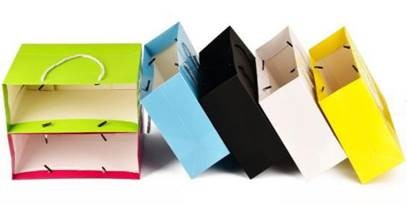

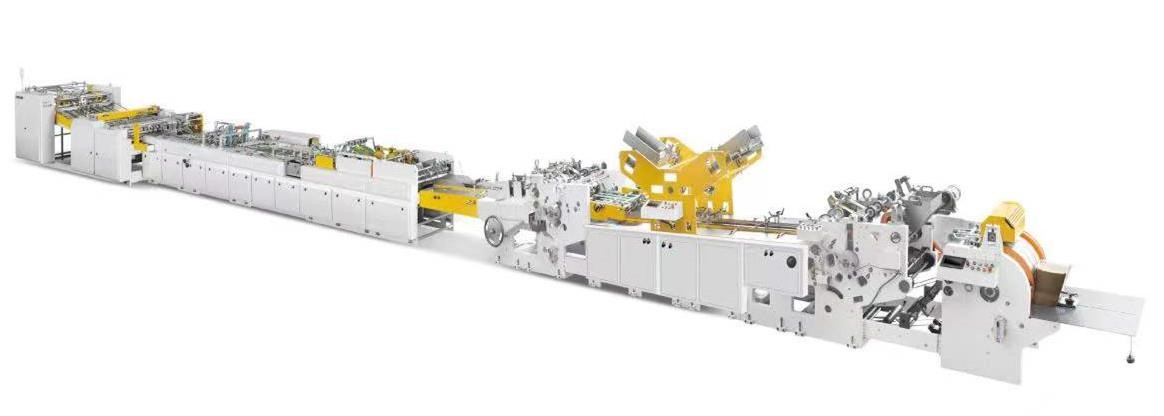

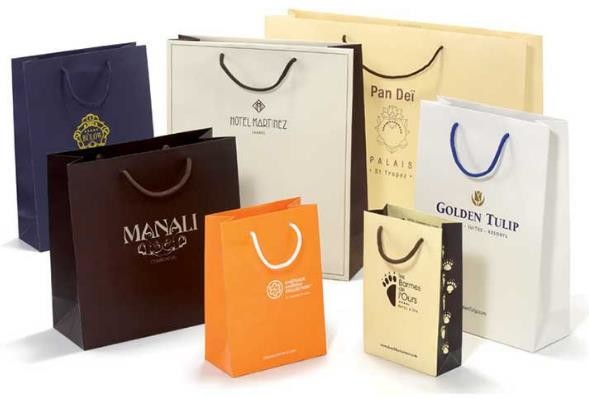

The Ecoo 450TB-S processes paper or printed paper sheets as raw materials, automatically conveying them through the machine to perform functions such as top card pasting, top folding, tube forming and gluing, hole punching, bottom folding, placement of the bottom reinforced card, bottom sealing and gluing, ultimately producing complete square-bottom paper bags (excluding handle rope processing).
The TB-S series features a straight-line structure for both top and bottom cardboard pasting, offering flexible placement options and space-saving benefits.
| MODEL | KL-220TB-S | KL-350TB-S | KL-450TB-S |
| Paper Bag Width | 110-240mm | 180-350mm | 200-450mm |
Paper Bag Bottom | 60-120mm | 80-160mm(3.14-6.29inch) | 90-170mm(3.54-6.69inch) |
| Paper Sheet Width | 380-700mm | 600-1040mm | 600-1240mm |
| Paper Sheet Length | 240-440mm | 290-530mm | 320-600mm |
Paper Weight | a.kraft paper:100- | a.kraft paper:120-250g/m² | a.kraft paper:120-250g/m² |
| Top Card Thickness | 220-450g/m² | 220-450g/m² | 220-450g/m² |
| Top Card Width | 100-230mm | 170-340mm | 190-440mm |
| Top Card Lenght | 20-50mm | 20-50mm | 20-50mm |
Max. Bottom Card | 110*230mm | 144*344mm | 170*440mm |
Min. Bottom Card | 50*100mm | 64*174mm | 74*194mm |
Bottom Card Thickn | 150-400g/m² | 150-450g/m² | 150-450g/m² |
| Hole Pitch | 60/100mm | 80/120mm | 100/140mm |
| Hole Diameter | Φ4,Φ5,Φ6 | Φ4,Φ5,Φ6 | Φ4,Φ5,Φ6 |
| Working Speed | 40-75pcs/min. | 40-70pcs/min. | 40-70pcs/min. |
| Glue Type | cold glue+hotmelt | cold glue+hotmelt glue | cold glue+hotmelt glue |
| Total Power | 30KW 380V 50HZ | 32KW 380V 50HZ | 35KW 380V 50HZ |
| Machine Weight | 14T | 15T | 17T |
| Machine Dimension | 23000*1930*1920mm | 23000*2100*1920mm |
FAQ:
Q: Why choose us?
A: We are manufacturers with a strict QC policy to control the production process. We have a strong technical team and after-sales service team to provide the best support and strive to exceed your expectations. Additionally:
- Inquiries will be replied to within 24 hours.
- OEM service is available.
- We protect your designs and information.
Q: Do you have CNC workshops?
A: Yes, we have our own CNC workshops where we produce molds in-house.
Q: Can I have a sample before ordering?
A: Yes, free samples can be sent out, but the freight cost is paid by you. You can choose from the following options:
1. Provide your account details for DHL/Fedex/TNT, etc.
2. Arrange for your courier to pick up the sample from our office.
3. Pay us the freight cost via T/T.
Q: Can you make customized paper cones?
A: Yes, please provide us with your sample first.
Q: What is the delivery time?
A: Machines are delivered approximately 45 days after receiving your deposit.
Q: Do you offer engineer overseas service?
A: Yes, we can send an engineer to help you install and train workers until the machine is running normally. If you encounter any problems at any time, we can provide technical support online as well.
Q: What are your payment terms?
A: We accept T/T with a 30% down payment and the balance paid before delivery. We also accept LC at sight or D/P, etc.
Q: Do you have any certificates?
A: Yes, we have CE and ISO certificates.
Q: Where is your factory located? How can I visit you?
A: Our factory is located in Zhongshan city, Guangdong province. We can pick you up from Guangzhou Airport, Zhuhai Airport, or Zhongshan North Station by high-speed rail.
Q: How can I contact you?
A: You can contact us by email, Whatsapp, WeChat, or telephone.
