Advantage:
1. Fast and high precision with full-servo motor
2. Fully automatic tension and feeding control
3. Intelligent position, choose file automatically
4. Standard 4 cutting heads distance can be adjusted automatically
5. Support 3 units cutting simultaneously
6. Intelligent cutting with trajectory optimization
Specifications:

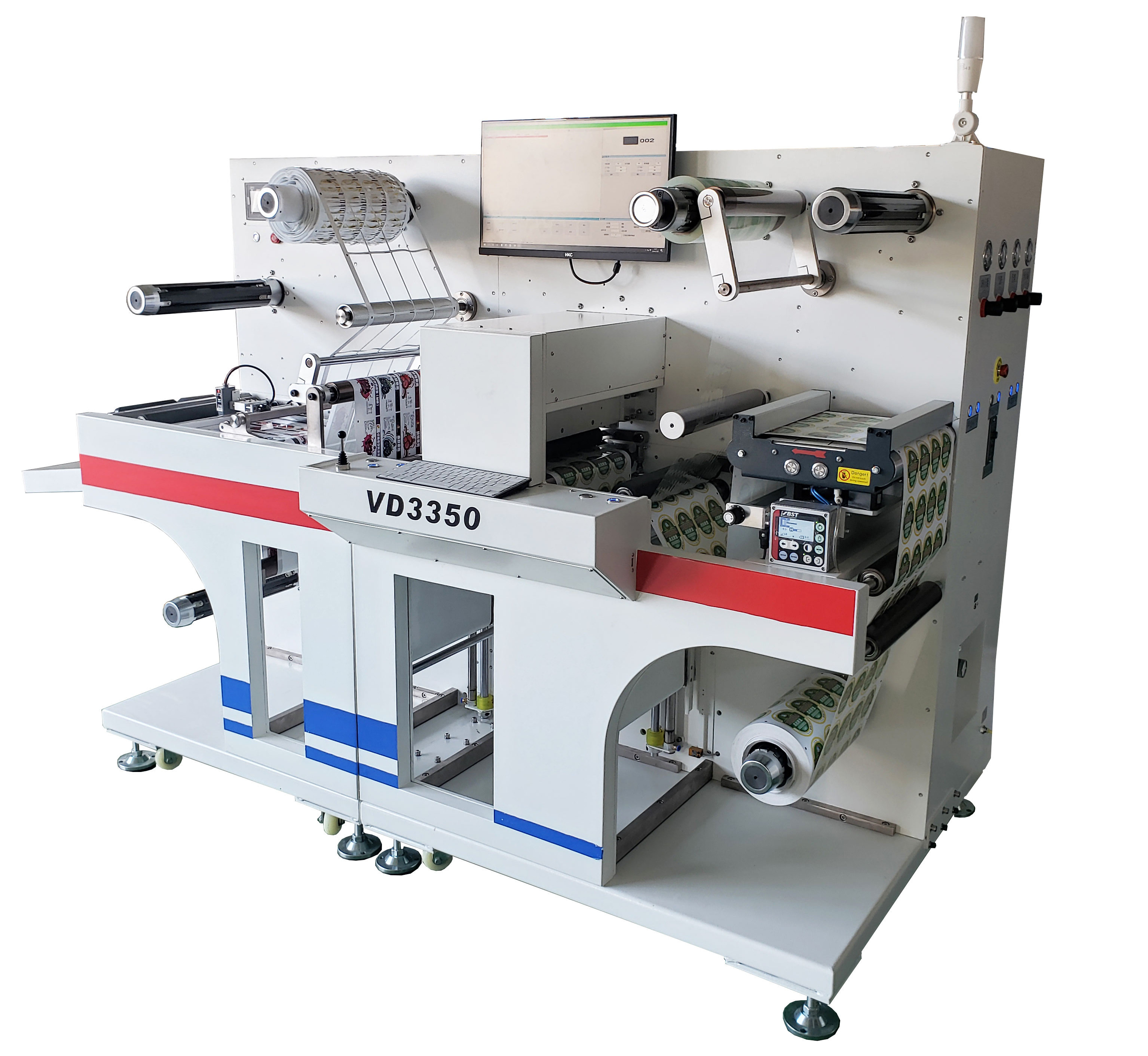

| Model | Ecoo-VD3350 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | Max.9m per minute (depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575CM |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/ Sheet paper cutter |
Machine Spare Parts:

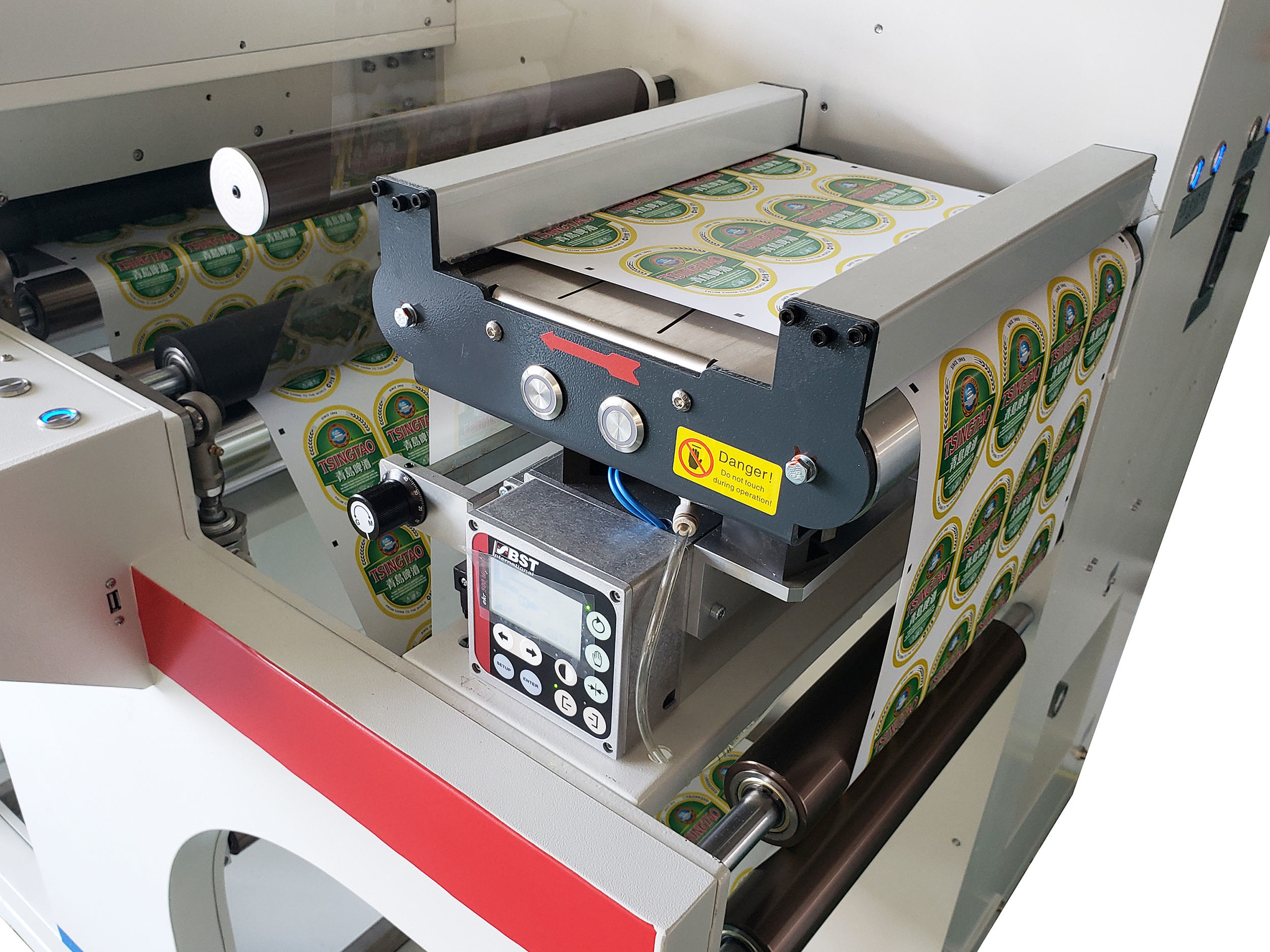

1. High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.
2. Cold laminating:
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.
3. Digital die-cutting system:
VD3350 Digital label die-cutter utilizes high precision screw transmission system. Max soeed can be 9m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.

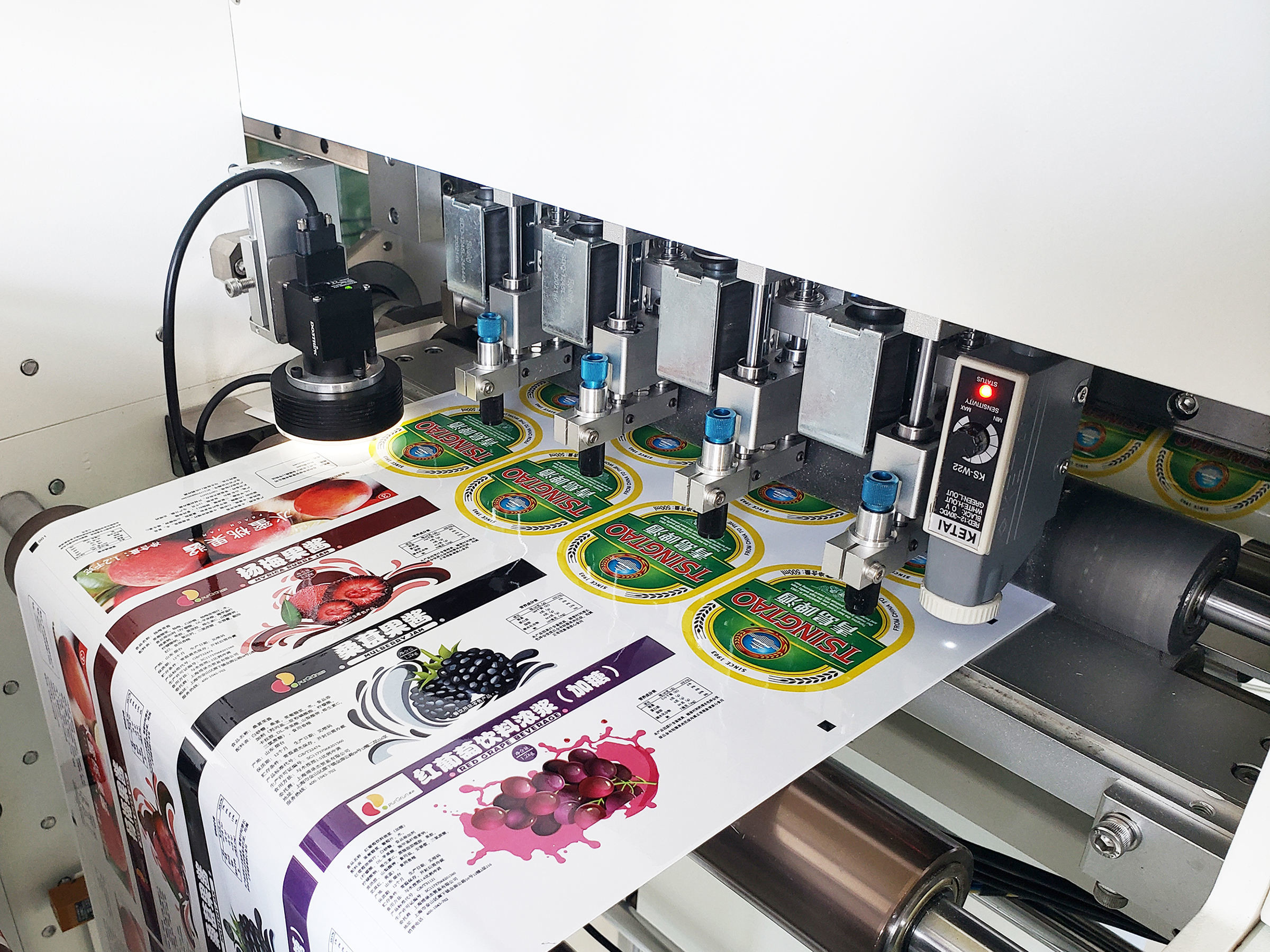

4. CCD identify system:
With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.
5. Precision slitting system:
Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.
6. The waste removing system:
The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.
7. Sheet Cutter:
The optional built-in Pc350 Sheet Cutter, can be inline with the main Die-cutting, to perform the synchronous die-cutting and sheet cutting.
