Name: Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: S2000
Price: 250,000.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Thermal CTP Machine

Speed: 20-60 Liter/hour

Resolution: 2400/44800/5080/10160 DPI

Max. Plate Imaging Area: 1630mm*1325mm

Min. Plate: 550mm*650mm

Speed: 18/28 Pph

Options: Autoloader, Inline Punch

Exposing Method: 256 Laser Valve Technology, Or Laser Diodes

Highlight:

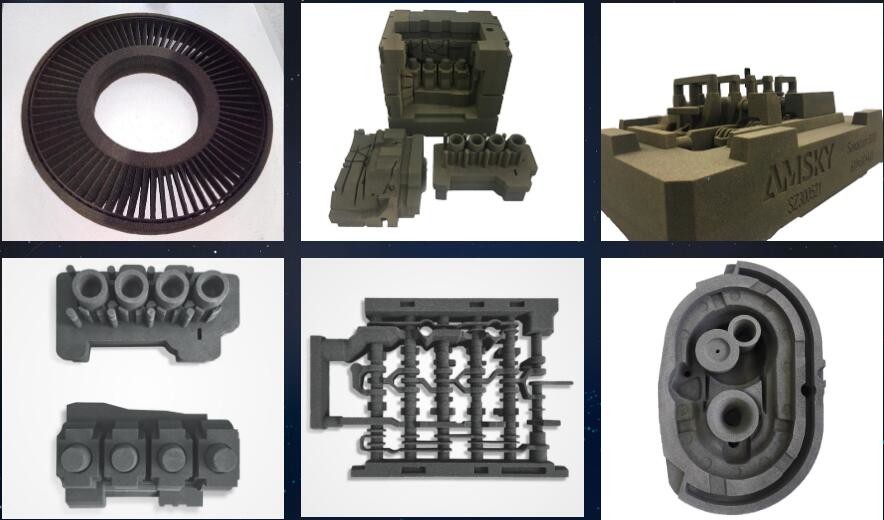

Large Format 3D Sand Mold Printer

600DPI 3D Sand Mold Printer

3D Sand Mold Printer 60L/H

Basic Infomation

Place of Origin: China

Brand Name: Ecoographix

Certification: ISO9000, ISO20001, CE

Model Number: S2000

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 30 DAYS

Payment Terms: L/C,T/T

Supply Ability: 300 SET PER YEAR

Gallery

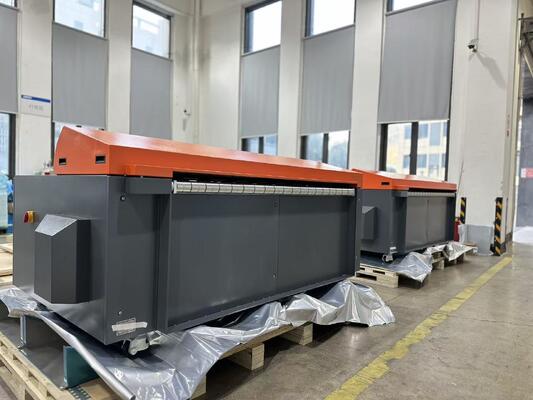

Manual Feeding VLF 1600mm Thermal CTP Machine with 1630mm x 1325mm Plate Area and 256 Laser Valve Technology

Product Description

Manual Feeding VLF 1600mm Thermal CTP Machine Solution

VLF 1600mm Format Thermal CTP Machine Solution

Manual feeding thermal CTP machine, T1600M
Inline processor - P1550
Inline stacker - S1150

Main Technical Specifications

ECOO VLF (Very Large Format) T-1600MX CTP Series

Model	T-1600MX
Exposing Method	External Drum
Imaging System	128-channel Discrete 830nm laser diode
Output Speed	18 plates/hour at 1630mm x 1325mm / 2400dpi
Plate Sizes	Max. 1680mm x 1350mm; Min. 650mm x 550mm
Exposing Size	Max. 1680mm x 1336mm
Media Type	Positive thermal CTP plate
Plate Thickness	0.15mm to 0.30mm or 0.27mm to 0.40mm (alternative)
Resolution	2400dpi
Repeatability	±5μm (continuous exposing for 4 times or above at 23℃ and 60% humidity)
Interface	USB 2.0 or USB 3.0 (USB 2.0 recommended)
Plate Loading	Semi-automatic (alternative autoloader system available)
Net Weight	1800kg
Machine Size (W×L×H)	2400 × 1430 × 1110 mm
Power Supply	Single phase: 220V-240V, Power consumption (peak): 5.5KW
Environment	Recommended temperature: 21-25℃; Allowed temperature: 15-30℃, Humidity: <70% RH

Processor P1550

Outstanding Features

PLC automatic control system with computer precision processing
LED interface for easy operation
PVC board tub and tough rubber roller, resistant to acid alkali corrosion
Proper and complete structure: developing, washing, gluing, drying tank
Automatic standby function for electricity and water saving
Automatic rehydration system
Convenient operation management

Technical Specifications

Machine Type	Ecoo-P-1550E
Page Size	Width max: 1500mm; Length min: 300mm
Plate Thickness	0.15-0.4mm
Processing Speed	13 to 50 seconds (Speed adjustable)
Temperature	10 to 45℃ adjustable (automatic temperature control with cooling system)
Developing Capacity	72L
Water Circulation	Yes (2 of 3 water pipes circulation)
Drying Temperature	20-65℃ adjustable
Power Supply	220V (210V-240V) single-phase 50-60Hz/7.5KW
Weight	800kg

Optional Equipment

Autoloader SCU1400

Model	SCU1400
Cassette Type	Single cassette, Loading platform
Plate Feeding Method	Auto-feed (removes interleaf paper simultaneously)
Plate Size	Max. 1,680 × 1350mm, Min. 550 × 650mm
Plate Thickness	0.15mm-0.40mm
Interface	RS485
Plate Loading Quantity	100 pieces
Net Weight	300kg
Device Size (W×D×H)	1962 × 2177 × 1071 mm
Power Supply	Single phase: 200V-240V; Max power (peak): 1100W
Environment	Recommended temperature: 21-25℃; Allowable temperature: 15-30℃; Humidity: 40%-70%
