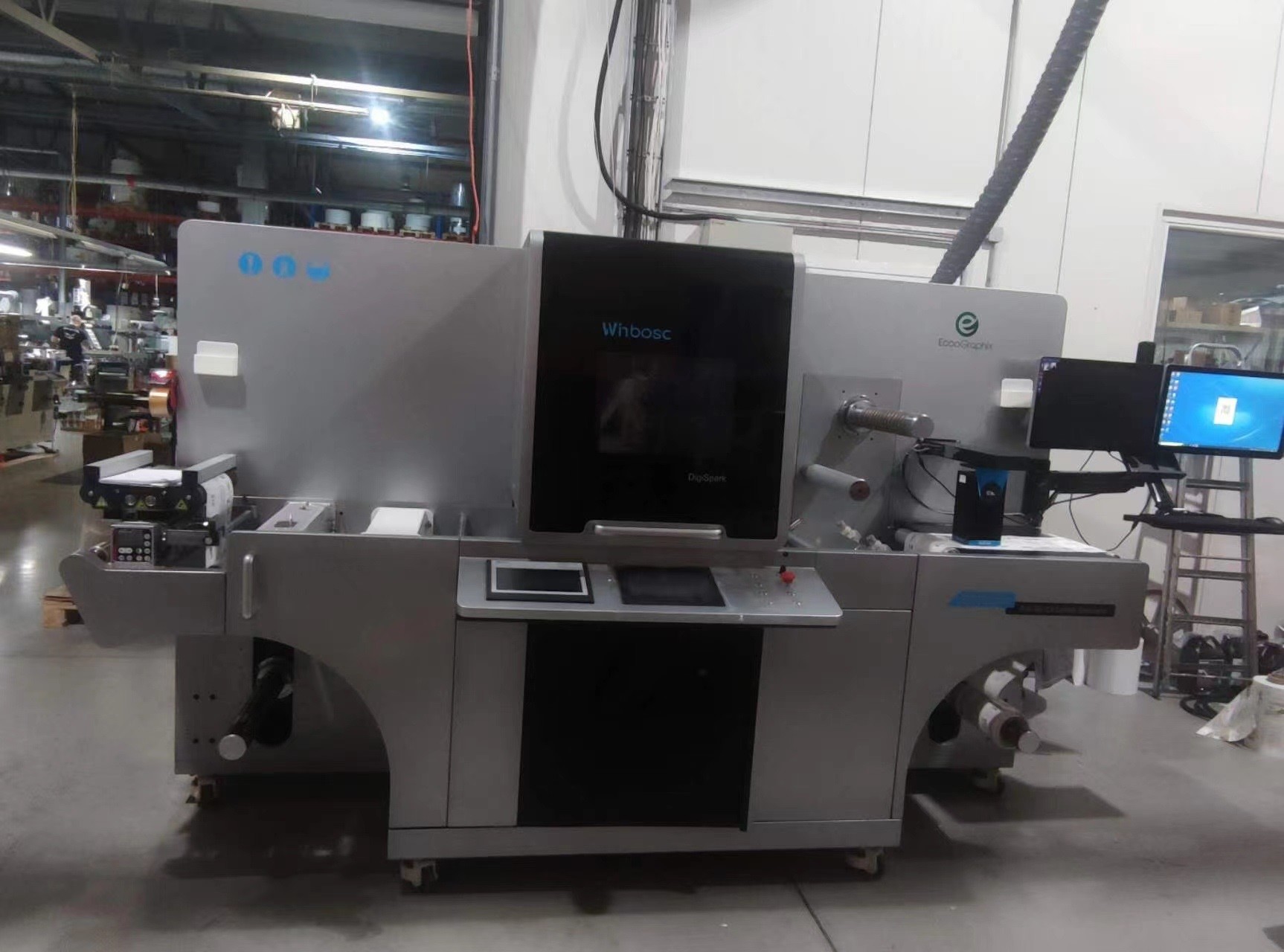

ECOO Digital Varnishing & Cold Stamping Label Enhancer
***** Introduction *****
EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic processes such as digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.
***** Specifications *****
EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine
Model
EcooSpark
Printing Technology
UV Piezo DoD-inkjet
Resolution
360*360dpi, up to 1440*360dpi
Printing Speed
6m/min - 50m/min(depend on polymer layer thickness)
Variable Image System
PDF, Optimized PDF, Optional Barcode System
Supported Image Standards
PDF, PDF/VT, TIFF, JPEG, BMP & other data base files
Substrates
Offset, Digital, Plastics, Laminated and Coated Substrates
Printing Image Width
288mm (extendable to 330 mm)
Polymer
WB-DS-Clear Polymer
Polymer Layer Thickness
From 10 up to 250 microns
Ink Curing
Inter UV-LED Pre-curing/ Full curing by UV-LED
Unwinder Diameter
Max. 700mm, Core 76mm
Rewinder Diameter
Max. 700mm, Core 76mm
Substrates Thickness
30-400micro
Substrates Width
Max. 330mm
Press With Foil Station
Machine dimensions(LxHxW): 3500mm*1900mm*1800mm
Operating Environment
Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical Requirements
Voltage: 3x380, ±5% 3 phases +G+N; Frequency: 50/60 Hz; Current: Avg. 58.6 Amps 23KW
Weight
2800kg
| EcooSpark Digital Foil Stamping and Varnishing Enhancing Machine |
| Model |
EcooSpark |
| Printing Technology |
UV Piezo DoD-inkjet |
| Resolution |
360*360dpi, up to 1440*360dpi |
| Printing Speed |
6m/min - 50m/min(depend on polymer layer thickness) |
| Variable Image System |
PDF, Optimized PDF, Optional Barcode System |
| Supported Image Standards |
PDF, PDF/VT, TIFF, JPEG, BMP & other data base files |
| Substrates |
Offset, Digital, Plastics, Laminated and Coated Substrates |
| Printing Image Width |
288mm(extendable to 330 mm) |
| Polymer |
WB-DS-Clear Polymer |
| Polymer Layer Thickness |
From 10 up to 250 microns |
| Ink Curing |
Inter UV-LED Pre-curing/ Full curing by UV-LED |
| Unwinder Diameter |
Max. 700mm, Core 76mm |
| Rewinder Diameter |
Max. 700mm, Core 76mm |
| Substrates Thickness |
30-400micro |
| Substrates Width |
Max. 330mm |
| Press With Foil Station |
Machine dimensions(LxHxW): 3500mm*1900mm*1800mm |
| Operating Environment |
Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
|
| Electrical Requirements |
Voltage: 3x380, ±5% 3 phases +G+N;
Frequency: 50/60 Hz;
Current: Avg. 58.6 Amps 23KW
|
| Weight |
2800kg
|
***** Workflow & Advantages *****
***** Features *****
Sturdy structure(double wall panel design)
Thick and thin materials, stability, mature platform
High stability
Good material applicability
No heating required
LED UV+water cooling roller
Suitable for ordinary cold foil
High quality-details, sharp edges:
Less heat, higher stability
Patented technology-better detail performance
Multi-process completed at one time
Customizable
***** Producing And Packaging *****
From producing to delivery, we make every detail very carefully to guarantee the good product quality and service to customers.
***** Certificates *****
***** FAQ *****
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
Q3: What is your warranty for the CTPs ?
A: Three years' laser head and main spare parts for the CTPs, one year for the processor(except printing heads).
If the customer use EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
