0.21mm Thick Flexo Printing Double Sided Adhesive Tape

1000 Square Meters
MOQ
Negotiable
Price
0.21mm Thick Flexo Printing Double Sided Adhesive Tape
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Adhesive Tape
Carrier: Glass Fiber Cloth
Glue: Hot Melt Glue
Rolls Length: Customized
Thickness: 0.21mm
Rolls Width: 340mm/ 680mm/ 510mm/ 1010mm Or Customized
Apply To: Flexible Plates, Rubber Board, Resin Board, Etc.
Characteristics: Strong Viscosity, Firm And Not Easy To Drop Adhesive, Easy To Peel Off, No Residue, Even Thickness, Long Shelf Life
Temperature Range: Long-term Temperature Resistance Of 40℃, Short-term Temperature Resistance Of 60℃
High Light:

0.21mm Double Sided Adhesive Tape

,

340mm Double Sided Adhesive Tape

,

Flexo Double Sided Adhesive Tape

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO HX-1001
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 20 Days
Payment Terms: L/C, T/T
Supply Ability: 2,000,000 Sqm/Year
Product Description

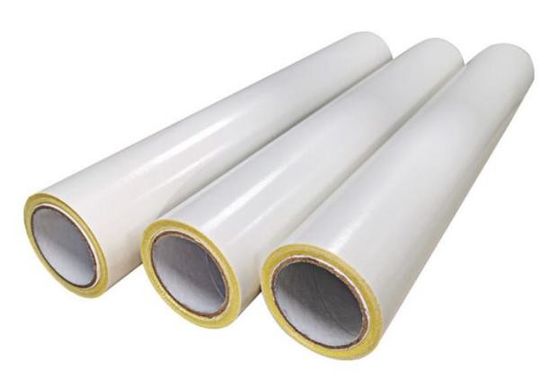

 Strong Viscosity Double Side Adhesive Tape For Flexo Printing









 1. Introductions


With fiberglass cloth as the base material, the two sides are coated with high quality rubber type or hot-melt type pressure sensitive glue, and the two sides are made of silicon release material.

Double-sided adhesive tape is specially designed for printing industry, which will not remain when detached, so it is convenient to replace the plate material. Glass fiber cloth base material is used to fix rubber or resin plates on the printing roller or resin sleeve. The lower initial viscosity is convenient to locate the plate, and the stickiness can prevent the plate from shifting during the operation of the machine, improve the printing quality and reduce the rate of defective printing.

All the raw materials of glue are made of the authentic materials such as Sinopec to ensure the stability of double-sided adhesive tapes.

Double-sided adhesive tape is universal in four seasons, suitable for middlemen circulation link long, solve the problem of double-sided adhesive tape from winter to summer.




 2. Specification
Double-side Adhesive Tabe
Name Ecoo HX-1001
Carrier Glass fiber cloth
Carrier color Yellow
Adhesive Hot melt glue
Temperature range Long-term temperature resistance of 40ºC, Short-term temperature resistance of 60ºC
Thickness 0.21mm
Hardness Hard
Rolls Width 340mm/ 680mm/ 510mm/ 1010mm or customized
Rolls Length Customized



 3. Characteristics

Ecoo double-sided adhesive tape has the characteristics of strong viscosity, firm and not easy to drop adhesive, easy to peel off, no residue, even thickness, long shelf life and so on.





 4. Material Usage

Double-sided adhesive tape can be used repeatedly in weaving bag factory, carton factory, plastic bag factory and other printing industries to paste and fix various flexible plates, rubber board, resin board, etc.



0.21mm Thick Flexo Printing Double Sided Adhesive Tape 0

0.21mm Thick Flexo Printing Double Sided Adhesive Tape 1

0.21mm Thick Flexo Printing Double Sided Adhesive Tape 2

0.21mm Thick Flexo Printing Double Sided Adhesive Tape 3

0.21mm Thick Flexo Printing Double Sided Adhesive Tape 4









 5. Certificates



0.21mm Thick Flexo Printing Double Sided Adhesive Tape 5



0.21mm Thick Flexo Printing Double Sided Adhesive Tape 6









 6. FAQ







 Q1: What are your main products ?



 A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


 You can get the equipment and consumables all in one and no worry about the after-sales service from our company.







 Q2: Where is your factory ?



 A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory !







 Q3: Is there any certification for your CTP machine ?



 A: Yes, all our CTP machines have been certified by SGS and CE.8







 Q4: Can you also supply the Workflow and RIP ?



 A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.







 Q5: What about the installation and after-sales technician support ?



 A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.


 These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
