High speed, intelligent adjusting, quick model change, formula Storage
Technical data
| Model | Ecoo-LS1246D | |
| Paper size (max) | L800 * W600mm | |
| Paper size (min ) | L135 * W100mm | |
| Max cardboard size | L760 * W560mm | |
| Min cardboard size |
|
|
| Max box size | L600 * W400 * H120mm | |
| Min box size | L80 * W65 * H15mm | |
| Paper thickness | 80-350g/sqm | |
| Cardboard thickness | 0.8-3mm | |
| Edge folding size | 10-90mm | |
| Turn in depth | 15-80mm | |
| Air pressure | 40L/min 0.8MPa | |
| Working speed | 15-45 pcs/min | |
| Motor power | 14kw/380v 3 phase | |
| Heating power | 8kw/380v 3 phase | |
| Machine weight | 4300kg | |
| Machine dimension | L6600 * W4200 * H3000mm |
Application
Quick job setting
1. No need to change air pressing plate;
2. No need to change truck in blade;
3. No need to move camera for size changing, quick job changing.
Make High-end boxes
1. Special pick up and wrapping system
2. Can use carton paper to wrap the inner box
3. Can make big size box, such as 600*400mm and the height can reach 120mm
4. Storage (memory) function for size setting
Suitable for changeable orders, such as 10000 pieces for one order
Work range
Features
1. Automatic setting function
2. Storage function for the positioning part, easy to adjustment
3. Pick up box system, can avoid to scraping cover paper, suitable for making high-end boxes
4. YAMAHA Robotic arm, Double Germany cameras(1000 pixels), Mitsubishi servo motor, Panasonic PLC.
5. Anti-leaking gluing system.
6. Servo motor feeding system.
7. Double forming part. High speed
8. Whole machine require working in stable working environment, such as air conditioner room.
9. High speed, could reach 45 piece/min.
Machine Working flow

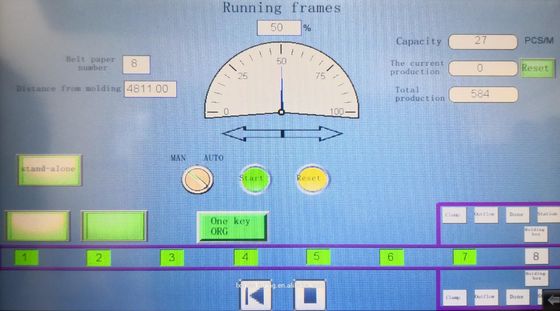

Easy/Quick/Automatic Setting
Required material for making a box on this machine for your reference
The machine details
