Sheet Square Bottom Shopping Paper Bag Forming Machine with Handle Holes
EcooGraphix is a professional supplier of eco-friendly paper processing machines and paper products. Following the enterprise development mission of “Create Value for Customers”.
At the beginning of 1990s, the production of snack boxes (such as ice cream paper cone, hamburger box, etc.) mainly relied on manual operation or machines imported from Europe and North America. The poor sanitary condition, low product consistency, low efficiency, expensive imported machines, long delivery period and high service cost all restricted the development of domestic paper production enterprises. However, Chinese national industries still developed rapidly and Dayuan was resolute to enter this completely new industry.

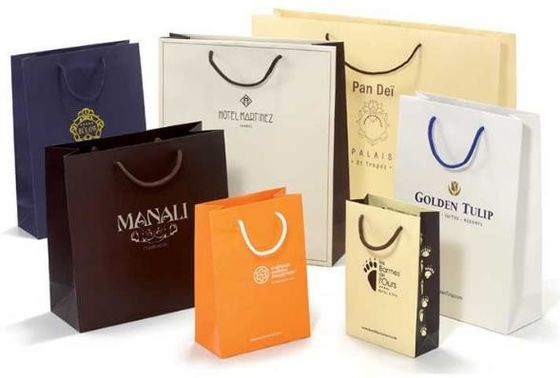

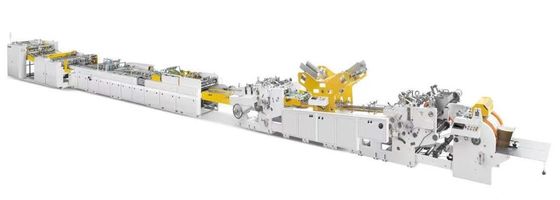

Ecoo 450TB-S processes the paper or printed paper sheets as raw materials, automatically conveyed through the machine to complete the functions of top card pasting ,top folding, tube forming and gluing, hole punching, bottom folding, placing the bottom reinforced card and pasting, bottom sealing and gluing, and finally outputting a complete square-bottom paper bag machine (excluding processing the handle rope).
The TB-S series is has a straight line structure both for pasting the cardboard at the bag mouth and pasting the cardboard at the bag bottom, which is flexible placement and save space.
| MODEL | KL-220TB-S | KL-350TB-S | KL-450TB-S |
| Paper Bag Width |
110-240mm (4.33-9.44inch) |
180-350mm (7.08-13.78inch) |
200-450mm (7.87-17.72inch) |
|
Paper Bag Bottom Width |
60-120mm (2.36-4.75inch) |
80-160mm(3.14-6.29inch) | 90-170mm(3.54-6.69inch) |
| Paper Sheet Width |
380-700mm (14.96-27.56inch ) |
600-1040mm (23.62-40.94inch) |
600-1240mm (23.62-48.81inch) |
| Paper Sheet Length |
240-440mm (9.44-17.32inch) |
290-530mm (11.41-20.86inch) |
320-600mm (12.25-23.62 inch) |
|
Paper Weight (Note: Above 200g/ m² need to be die-c ut ) |
a.kraft paper:100- 200g/m² b.art paper+PP film laminating:120- 230g/m² |
a.kraft paper:120-250g/m² b.art paper+PP film laminating:157-230g/m² c.white cardboard+PP film laminating:150-250g/m² d.grey cardboard+PP film laminating:150-300g/m² |
a.kraft paper:120-250g/m² b.art paper+PP film laminat ing:157-230g/m² c.white cardboard+PP film laminating:150-250g/m² d.grey cardboard+PP film laminating:150-300g/m² |
| Top Card Thickness | 220-450g/m² | 220-450g/m² | 220-450g/m² |
| Top Card Width | 100-230mm | 170-340mm | 190-440mm |
| Top Card Lenght | 20-50mm | 20-50mm | 20-50mm |
|
Max. Bottom Card L*W |
110*230mm | 144*344mm | 170*440mm |
|
Min. Bottom Card L*W |
50*100mm | 64*174mm | 74*194mm |
|
Bottom Card Thickn ess |
150-400g/m² | 150-450g/m² | 150-450g/m² |
| Hole Pitch | 60/100mm | 80/120mm | 100/140mm |
| Hole Diameter | Φ4,Φ5,Φ6 | Φ4,Φ5,Φ6 | Φ4,Φ5,Φ6 |
| Working Speed | 40-75pcs/min. | 40-70pcs/min. | 40-70pcs/min. |
| Glue Type |
cold glue+hotmelt glue |
cold glue+hotmelt glue | cold glue+hotmelt glue |
| Total Power | 30KW 380V 50HZ | 32KW 380V 50HZ | 35KW 380V 50HZ |
| Machine Weight | 14T | 15T | 17T |
| Machine Dimension | 23000*1930*1920mm | 23000*2100*1920mm |
FAQ:
Q:Why choose us ?
A: We are manufacturer .We have strict QC policy to control the producing process,strong technica team and after-sales service team to offer best support,try our best to exceeding your expectations.
-Inquiry will be replied with 24 hours.
-OEM service is available.
-Protect your design & information.
Q:Do you have the CNC workshops ?
-We have our own CNCworkshops,we produces the molds by ourselves.
Q: Can I have sample before order?
A: Yes ,free samples can be sent out,the freight cost is paid by you.
(1).You can provide your a/c like DHL/Fedex/TNT ect.
(2).You can call your courier to pick up at our office.
(3).You can pay us the freight cost by T/T.
Q: Can you make the customized paper cone ?
A: Yes , please show us your sample first .
Q: What time for delivery ?
A: Machine about 45 days after get your deposit.
Q: Engineer oversea service ?
A: Yes ,we can send engineer to help you install ,training worker until the machine normal running.
-If you meet any problem at any time,we could offer the technical support on line as well.
Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight or D/P etc.
Q: Do you have any certificates?
A:We have CE and ISO certificates .
Q: Where is your factory located ? How can I visit you?
A: Our factory is located at Zhongshan city ,Guangdong province .We can pick you up from either Guangzhou airport or Zhuhai airport or Zhongshan north station by high-speed rail.
Q:How can I contact you ?
A:You can contact us by Email / Whatsapp / Wechat / Telephone .
