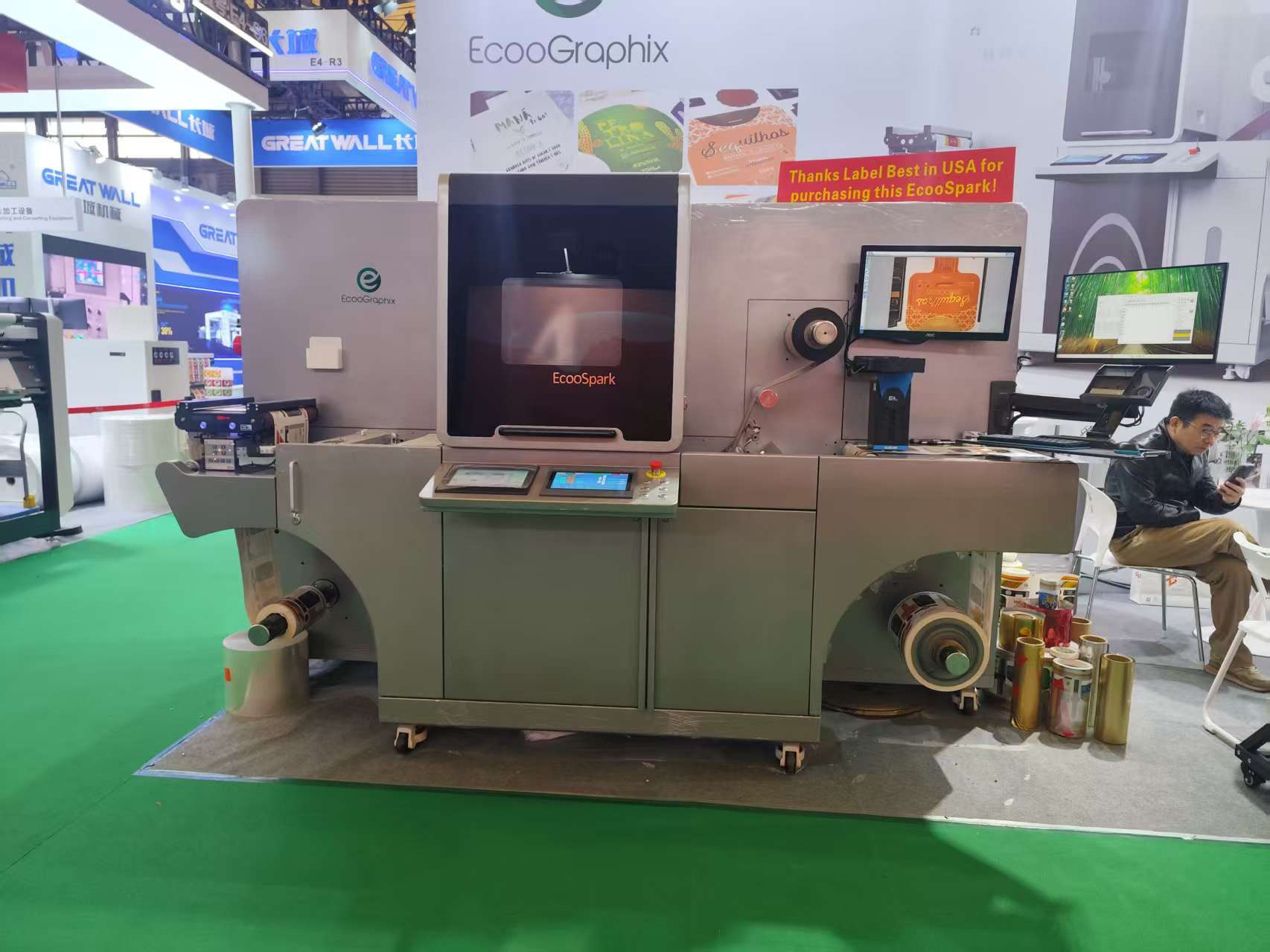

Digital Rotary UV Varnish Printing and Cold Foiling machine

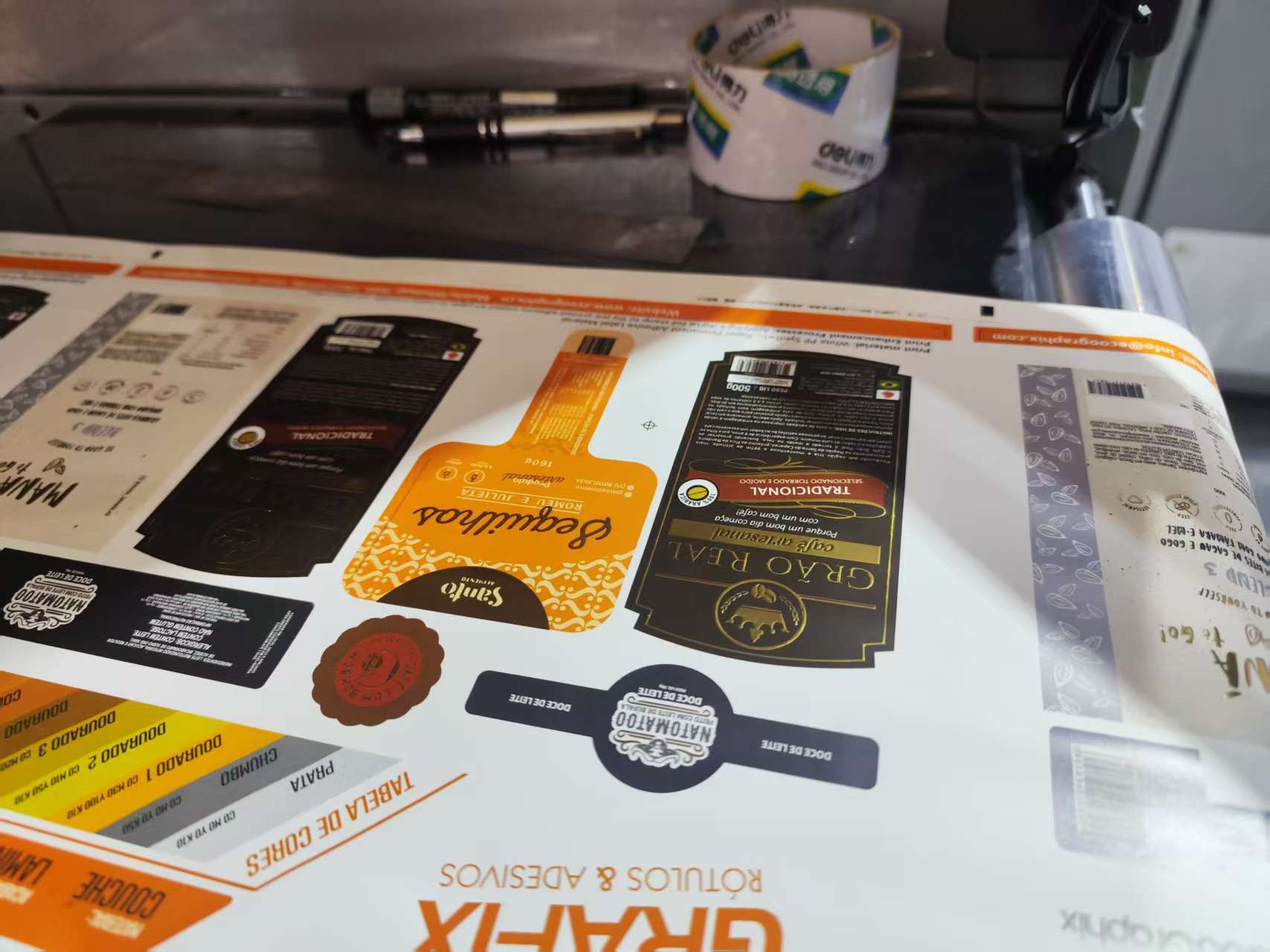

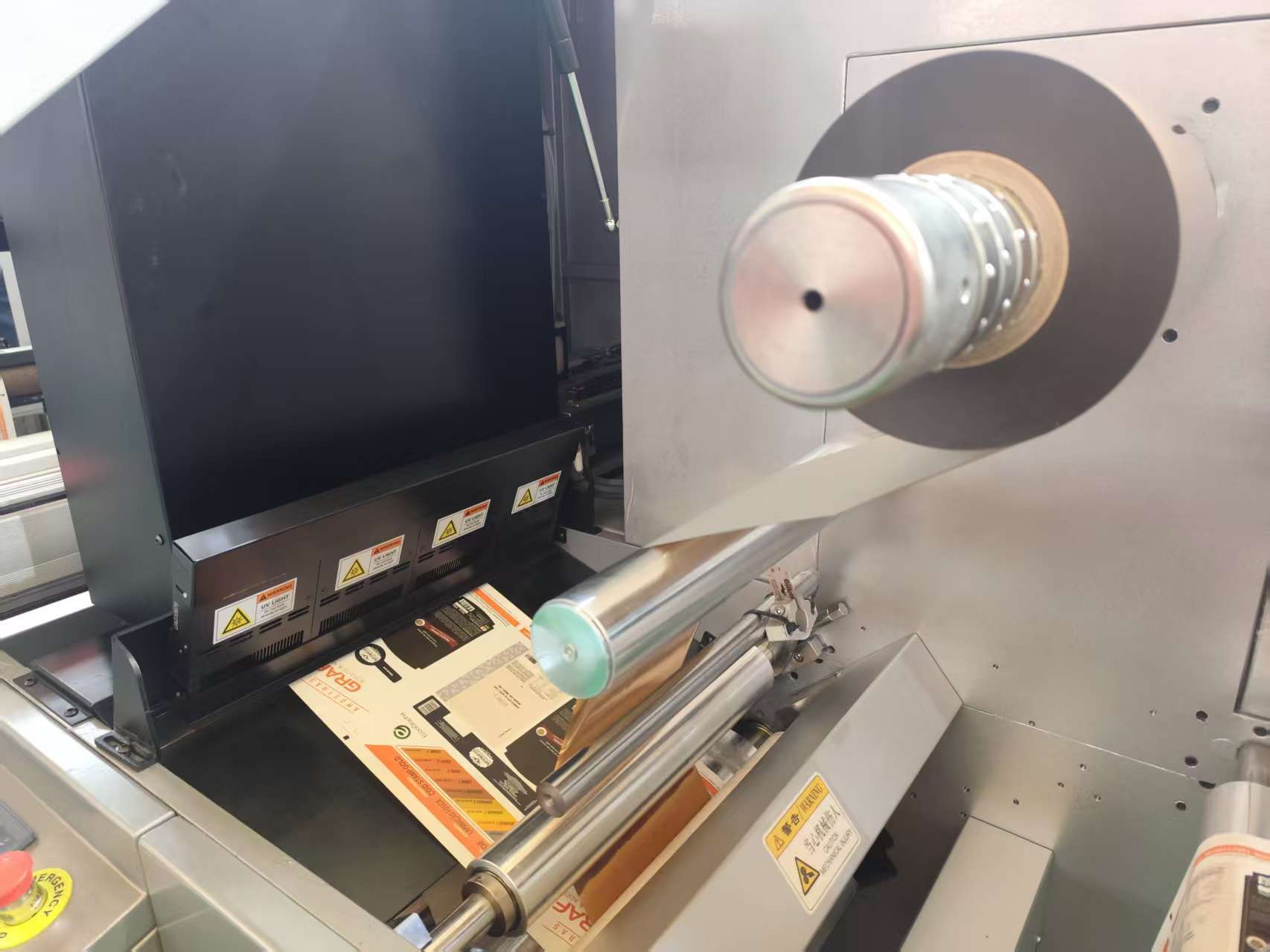

Started in 2018, EcooSpark is the pioneer as the first digital varnishing and foiling machine with over 45 units installations worldwide by now. It is now the 5th generation. Simple design, robustness, reliability and state of art quality are core strengths. This machine can do UV spot varnishing, cold foil stamping, braille printing ,3D embossing and etcs, by KM print head and digital LED UV Inkjet technology.
With about 20 years' exporting experience,we have many customers worldwide, such as OEM for Presstek/Mark Andy , and Sttark in USA,Beneco in Canada, Imaks in Latvia, Focus Print Group in Australia,TSG in Mexico,Esen Graphics in Turkey and so on.We can provide customers reliable quality products with competitive prices.
EcooSpark is the ideal digital label finishing embellishment machine for most digital label printers such as HP Indigo, Xeikon,Screen Truepress and other similars.
| Model EcooSpark |
| Printing Technology |
UV Piezo DoD(drop on demand)-inkjet |
|
| Resolution |
up to 1440*360 dpi |
|
| Printing speed |
10m/min - 60m/min(depend on polymer layer thickness) |
|
| Variable Image system |
PDF, optimized PDF, Optional barcode system |
|
| Supported image standards |
PDF,PDF/VT,TIFF, JPEG, BMP & other data base files |
|
| Substrates |
Offset, Digital, Plastics, Laminated and coated substrates |
|
| Printing image width |
288mm (extendable to 320 mm) * 10 m (Length) |
|
| Polymer |
WB-DS-Clear Polymer |
|
| Polymer layer thickness |
From 10 up to 180 microns |
|
| Ink curing |
Inter UV-LED Pre-curing/Full curing by UV-LED |
|
| Unwinder diameter |
Max. 700mm, Core 76mm |
|
| Rewinder diameter |
Max. 700mm, Core 76mm |
|
| Substrates thickness |
30-400 micro |
|
| Substrates width |
Max 330mm |
|
| Press with Foil station |
Machine dimensions (LxHxW) 3500mmx1900mmx1800mm |
|
| Operating environment |
Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity |
|
|
Electrical requirements
|
Voltage: 3x380, ±5% 3 phases +G+N ; Frequency: 50/60 Hz
Current: Avg. 25 Amps
|
|
| Weight |
2800kg |
|
The strength of our machine configurations are :
1)Full Sets of Mitsubishi servers;

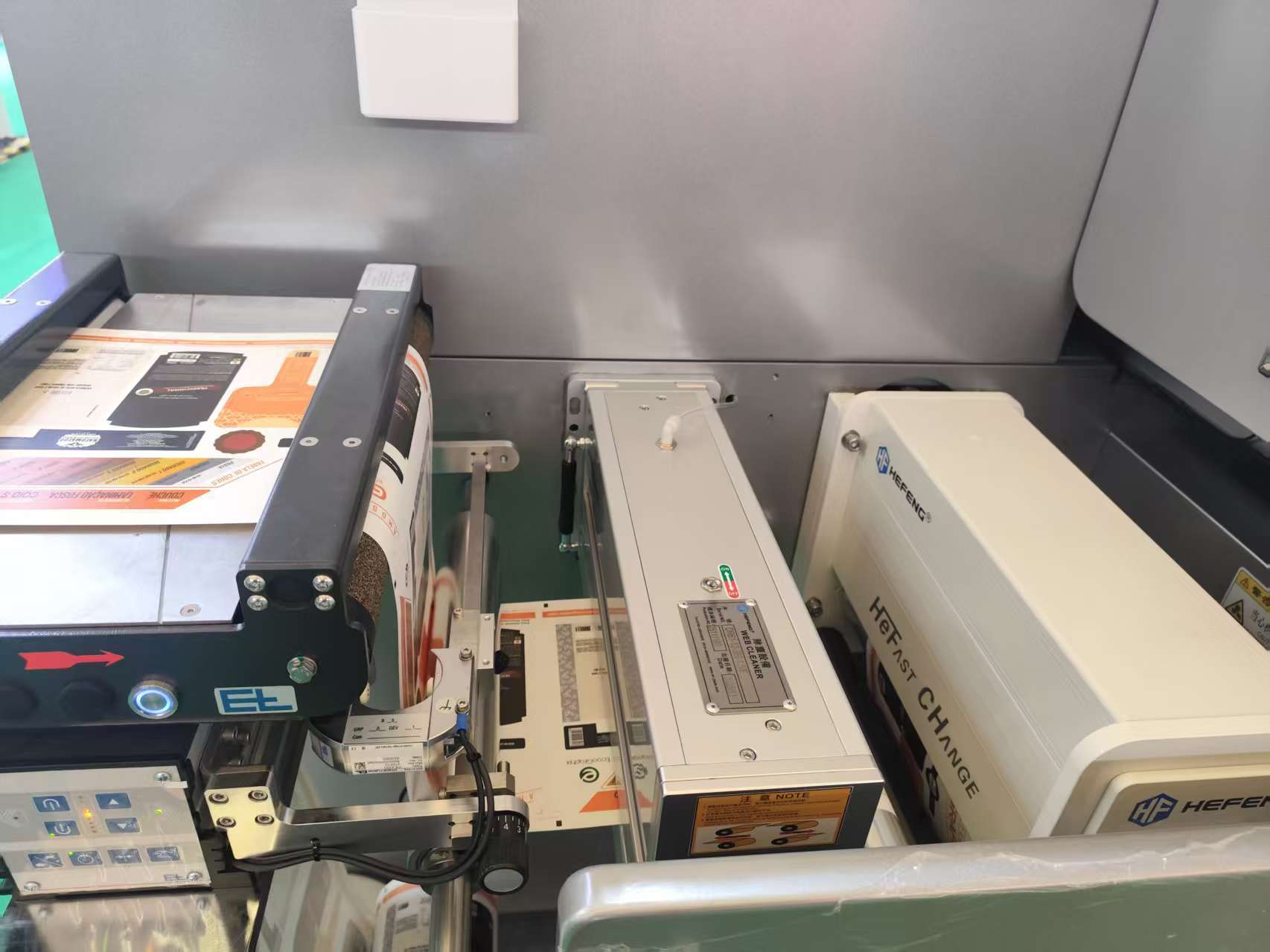

2)HeFeng Corona Treatment;

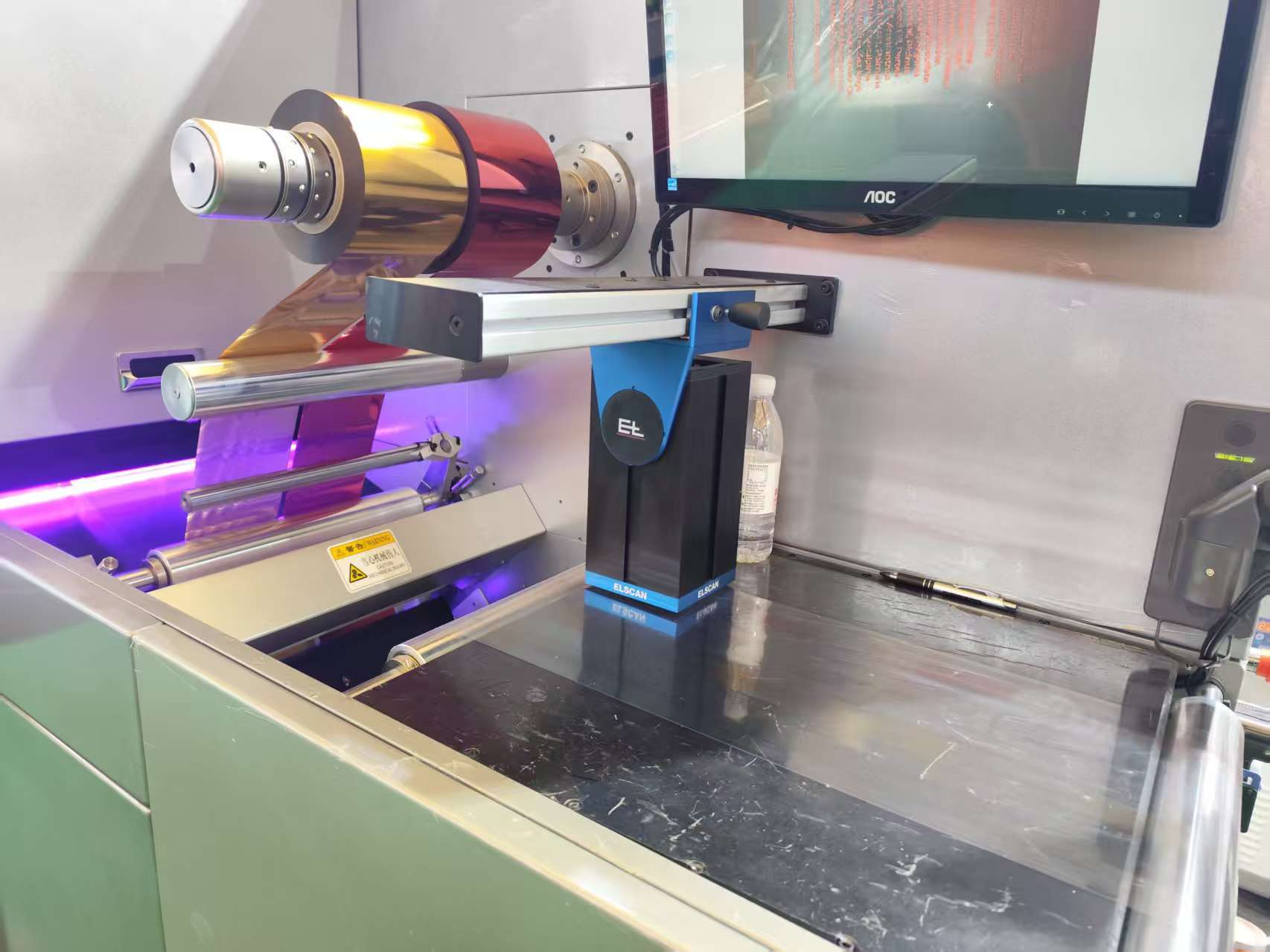

3)Web guide and Monitoring System: E+L;
4) Full Led-UV curing system;
5) Printing Software: GIS UK;
6)Auto Cleaning System;
7) KM 1024i print head;
8) Multiple sensors for tention control.
There are 288mm, 330 mm and 430 mm model optional (printing width). Most of our machines are used for about 5years now with no trouble,customers are very pleased with the machine stable and perfect performance. We can provide 3 years'warranty for the machine and print heads. Prices and trading terms are negotiable.
FAQ:
Q:Why choose us ?
A: We are manufacturer .We have strict QC policy to control the producing process,strong technica team and after-sales service team to offer best support,try our best to exceeding your expectations.
-Inquiry will be replied with 24 hours.
-OEM service is available.
-Protect your design & information.
Q:Do you have the CNC workshops ?
-We have our own CNCworkshops,we produces the molds by ourselves.
Q: Can I have sample before order?
A: Yes ,free samples can be sent out,the freight cost is paid by you.
(1).You can provide your a/c like DHL/Fedex/TNT ect.
(2).You can call your courier to pick up at our office.
(3).You can pay us the freight cost by T/T.
Q: Can you make the customized paper cone ?
A: Yes , please show us your sample first .
Q: What time for delivery ?
A: Machine about 45 days after get your deposit.
Q: Engineer oversea service ?
A: Yes ,we can send engineer to help you install ,training worker until the machine normal running.
-If you meet any problem at any time,we could offer the technical support on line as well.
Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight or D/P etc.
Q: Do you have any certificates?
A:We have CE and ISO certificates .
Q: Where is your factory located ? How can I visit you?
A: Our factory is located at Wenzhou city ,Zhejiang province .We can pick you up from either Shanghai or Wenzhou airport or station by high-speed rail.
Q:How can I contact you ?
A:You can contact us by Email / Whatsapp / Wechat / Telephone .
