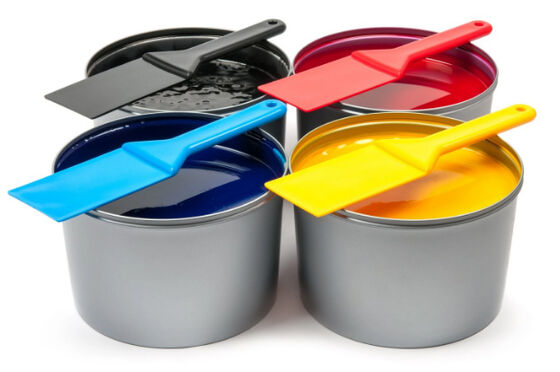

CMYK Offset Sheetfed Printing Inks ECOO INK F Cost Effective for Newspaper Print
Fast Drying,Environmental Friendly
1. Application
ECOO-INK-F offset printing ink is developed at the latest European technology system, it is made from polymeric, high-soluble resin, new paste pigment.
This product is suitable for printing packaging, advertisement, label, high-quality brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for medium and high-speed printing.
2. Characteristic
1) Environment friendly
2) Good water/ink balance
3) Rich in printing layer
4) Clear and complete in printing dots
5) Quick-drying performance, quick setting, quick turn
ECOO-IN-A
Printing speed: 15000rph-18000rph.
Anti-skinning performance.
Good water/ink balance.
Rich in printing layer.
Clear and complete in printing dots.
No need to add any additives, ready for use.
Quick-drying performance, quick setting, quick turn.
ECOO-IN-B
Printing speed: 12000rph-15000rph
Environment protecting.
Anti-skinning performance.
Good water/ink balance.
Rich in printing layer.
Clear and complete in printing dots.
Quick-drying performance, quicksetting, quick turn.
ECOO-IN-C
Printing speed: 12000rph-15000rph
Environment protecting
Anti-skinning performance
Good water/ink balance.
Rich in printing layer
Clear and complete in printing dots.
Quick-drying performance, quicksetting, quick turn.
ECOO-IN-D
Printing speed: 10000rph-13000rph.
Environment protecting.
Anti-skinning performance.
Good water/ink balance.
Rich in printing layer.
Clear and complete in printing dots.
Quick-drying performance, quick setting, quick turn.
3. Specification
Type | ECOO-INK-F |
Printing speed | 8,000rph-10,000rph |
Packing | 1 kg/2.5 kg per tin, 12tins/ 6 tins per carton |
Shelf Life | 3 years (from the production date); product against light and water |
Appearance | Colored paste |
Application |
ECOO-IN-F printing ink is suitable for printing packaging, advertisement, label, brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for single-color and multi-color printing. |
ITEM/TYPE |
TACK VALUE |
FLUIDITY (mm) |
PARTICLE SIZE (μm) |
SETTING TIME (min) |
DRYING TIME (hr) |
SKINNING TIME (hr) |
YELLOW | 6-7 |
35±1
|
15 | 4 | < 10 | >15 |
MAGENTA | 5.5-6.5 |
34±1
|
15 | 4 | < 10 | >15 |
CYAN | 6.5-7.5 |
35±1
|
15 | 4 | < 10 | >15 |
F BLACK |
7-8 |
35±1
|
15 | 4 | < 10 | >15 |
Tack Value | The value is measured in 1 minute by inkometer at 32℃ and 400rpm. | |||||
Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc | |||||
Condition of test | Room temperature 25℃, humidity 65%-75% |
ITEM/TYPE |
Light Resistance |
Heat Resistance |
Acid Resistance |
Alkaline Resistance |
Alcohol Resistance |
Soap Resistance |
F YELLOW |
4 | 5 | 5 | 4 | 4 | 4 |
F MAGENTA |
3 | 5 | 5 | 5 | 4 | 5 |
F CYAN |
7 | 5 | 5 | 5 | 5 | 5 |
F BLACK |
7 | 5 | 5 | 5 | 5 | 5 |
Light Fastness | 1-8 (weak-strong) | |||||
Others | 1-5 (weak-strong) |
4. Composition and related information
Hazards identification
· General information: This product is not dangerous.
· Hazard description: Not applicable.
· Information concerning particular hazards for human and environment:
The product has to be labelled due to the calculation procedure of the "General Classification guideline for
chemicals of 67/548/EEC and 1999/45/EC" as well as 1272/2008/EC in the latest valid version.
· Classification system:
The classification is according to the latest editions of the EU-lists, and extended by company and literature
data.
· GHS label elements:
Not applicable
