EcooSpark Digital Label UV Varnish Printing and Foil Stamping Machine with Braille Printing

1SET
MOQ
Negotiable
Price
EcooSpark Digital Label UV Varnish Printing and Foil Stamping Machine with Braille Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Max Roll Width: 450mm
Machine Speed: 50m/min
Machine Weight: 2500KGS
Printing Speed: 10m/min - 60m/min
Printing Width: 288mm (extendable To 320mm)
Substrates Width: Max 330mm
Highlight:

1µm precision 3d sand printer

,

rapid prototyping sand mold printer

,

Prototyping 3D Sand Mold Printer
Basic Infomation
Place of Origin: China
Brand Name: ECOOGRAPHIX
Certification: CE,SGS
Model Number: EcooSpark
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: Within 50days
Payment Terms: T/T,L/C
Supply Ability: 300SETs
Product Description
Digital Label UV Varnish Printing and Foil Stamping Machine
Label printing using hot or cold foil stamping technology has made significant progress in recent years. Processes such as laser, anodized aluminum, hot stamping, and UV LED cold stamping create beautiful, colorful, and saturated products that are difficult to . The hot stamping process for packaging is particularly demanding and requires specific anti-ing properties.
To enhance label printing quality, it's essential to improve product smoothness and gloss performance, ensuring consumption intensity and product grade are maintained.
With ongoing developments in cold foil technology, advanced label printing equipment now delivers even more powerful capabilities. High-end applications including red wine labels, beverage labels, cosmetic packaging, and gift box labels effectively utilize hot stamping technology.
EcooSpark represents China's first digital roll label embellishment machine since 2018, with numerous installations worldwide. Its core strengths include simple design, robustness, reliability, and state-of-the-art quality. This versatile machine performs UV spot varnishing, cold foil stamping, braille printing, 3D embossing, lamination, and more using KM print heads and digital LED UV inkjet technology.
Key Features
  • Full sets of Mitsubishi servers
  • HeFeng Corona Treatment system
  • Web guide and monitoring system: E+L
  • Full LED-UV curing system
  • Printing software: GIS UK
  • Automatic cleaning system
  • KM 1024i print head
  • Multiple sensors for tension control
Available in 288mm, 330mm, and 430mm printing width models. Most of our machines have been operating reliably for approximately 5 years with no issues, earning high customer satisfaction for stable and perfect performance. We offer a 3-year warranty for both machine and print heads. Prices and trading terms are negotiable.
Technical Specifications
Model EcooSpark
Printing Technology UV Piezo DoD (drop on demand) - inkjet
Resolution Up to 1440×360 dpi
Printing Speed 10m/min - 60m/min (depending on polymer layer thickness)
Variable Image System PDF, optimized PDF, optional barcode system
Supported Image Standards PDF, PDF/VT, TIFF, JPEG, BMP & other database files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing Image Width 288mm (extendable to 320mm) × 10m (Length)
Polymer WB-DS-Clear Polymer
Polymer Layer Thickness From 10 up to 180 microns
Ink Curing Inter UV-LED Pre-curing / Full curing by UV-LED
Unwinder Diameter Max. 700mm, Core 76mm
Rewinder Diameter Max. 700mm, Core 76mm
Substrates Thickness 30-400 microns
Substrates Width Max 330mm
Press with Foil Station Dimensions 3500mm × 1900mm × 1800mm (L×H×W)
Operating Environment Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical Requirements Voltage: 3×380, ±5% 3 phases +G+N; Frequency: 50/60 Hz; Current: Avg. 25 Amps
Weight 2800kg
Product Gallery

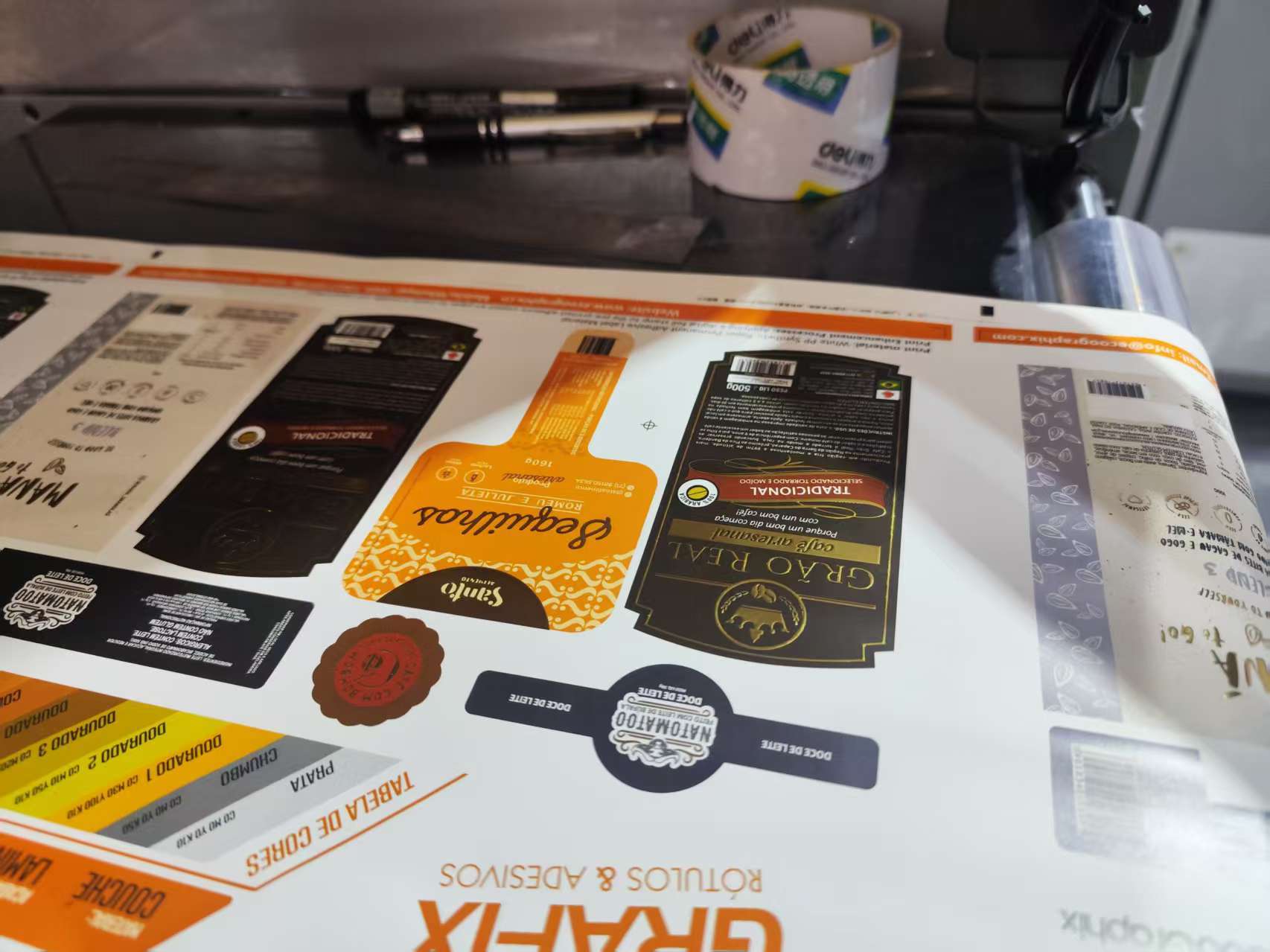

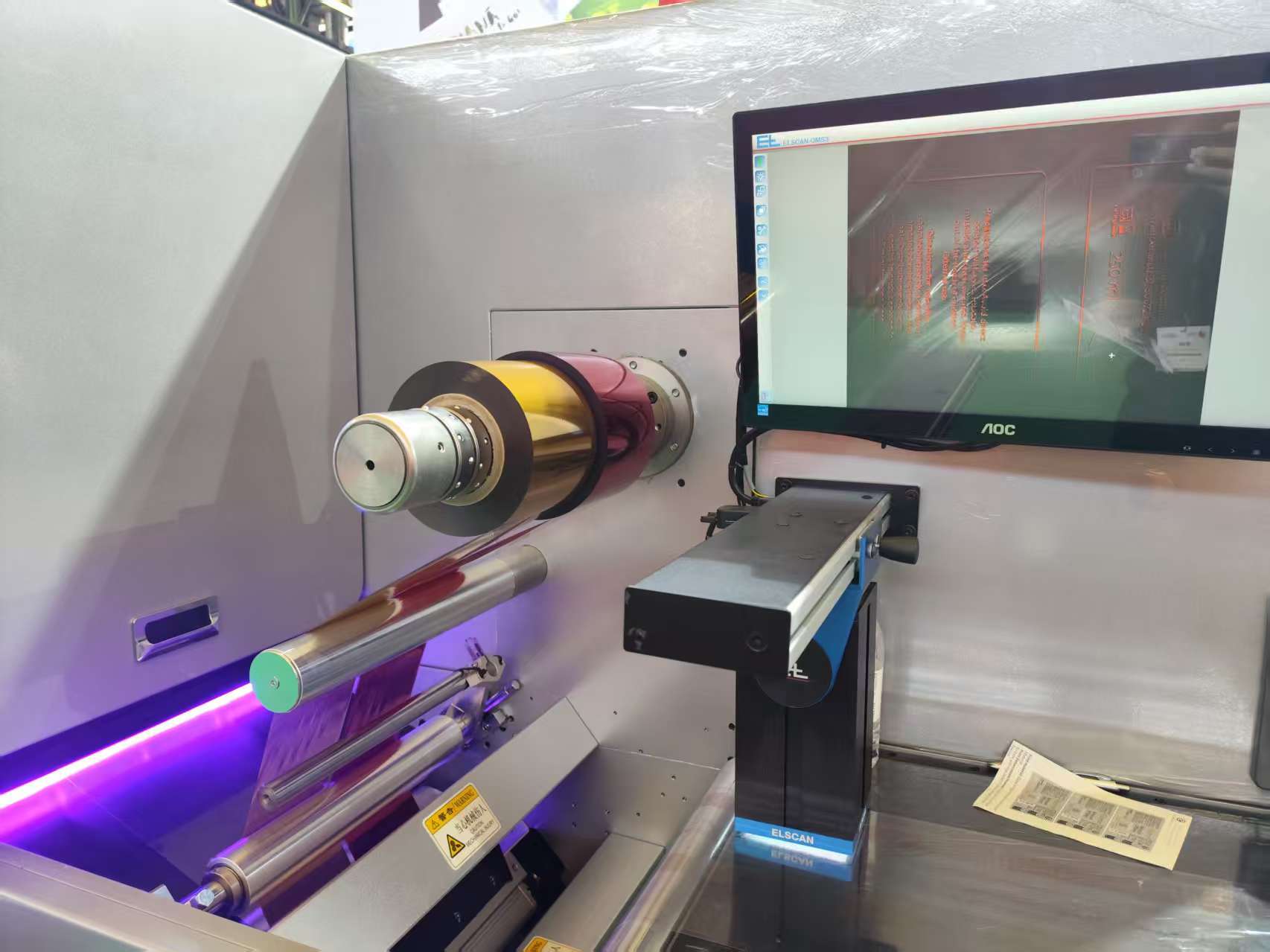

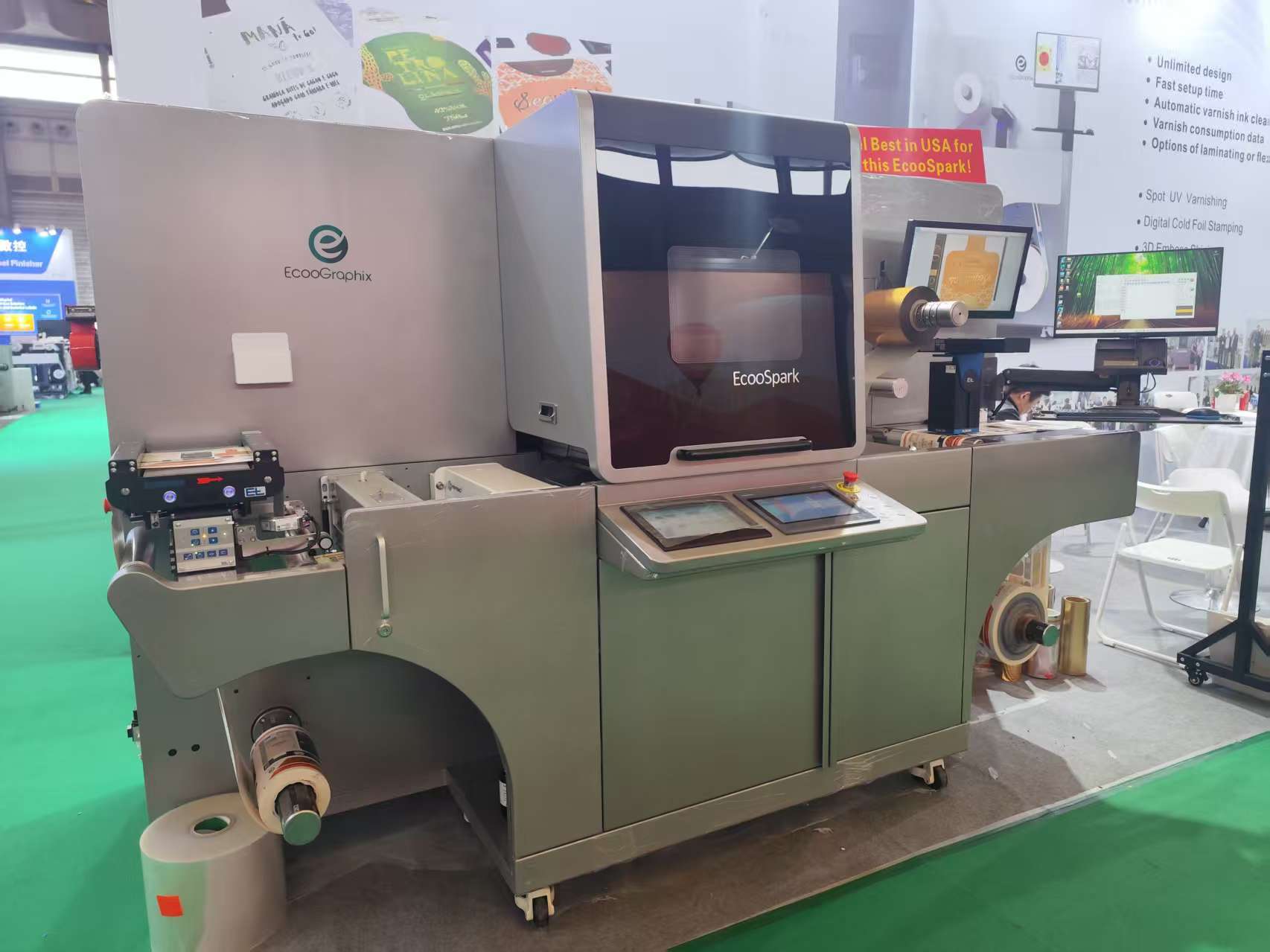

EcooSpark Digital Label UV Varnish Printing and Foil Stamping Machine with Braille Printing 0 EcooSpark Digital Label UV Varnish Printing and Foil Stamping Machine with Braille Printing 1 EcooSpark Digital Label UV Varnish Printing and Foil Stamping Machine with Braille Printing 2 EcooSpark Digital Label UV Varnish Printing and Foil Stamping Machine with Braille Printing 3
