800 Automatic Foil Stamping And Die Cutting Machine
Product Description
Brief Introduction:

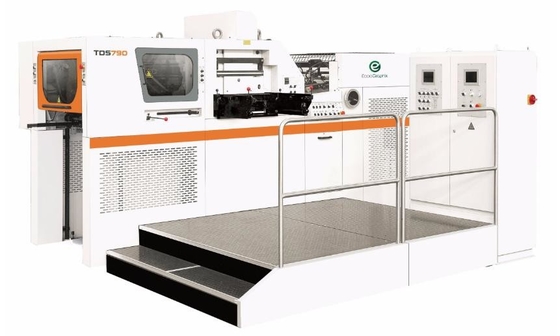

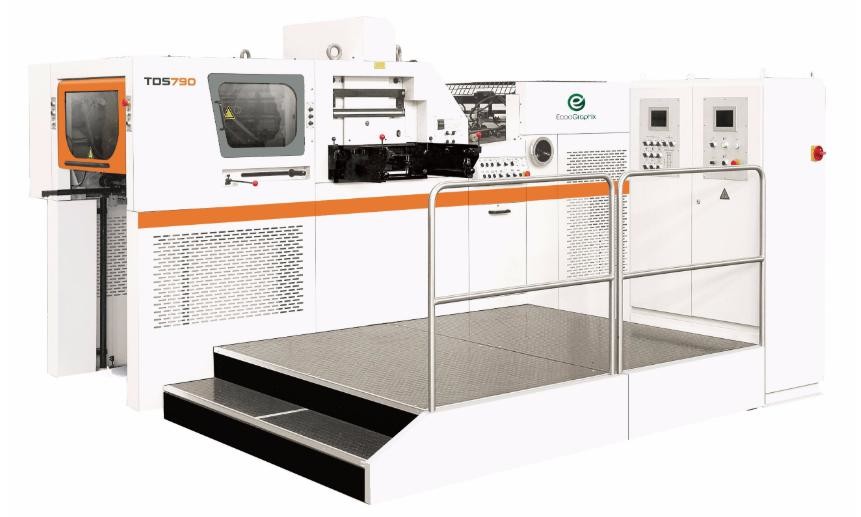

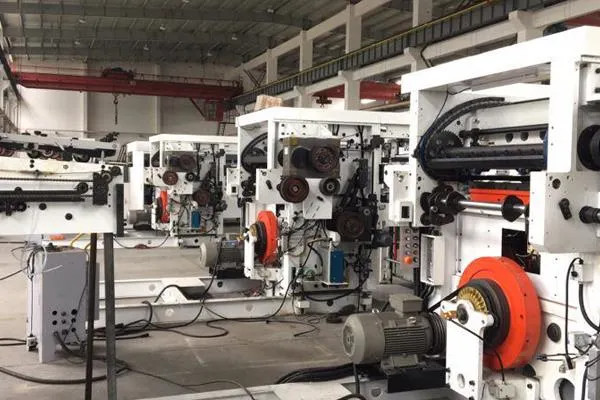

The Ecoo-790 automated die-cutter and hot foil printer comprises a feeder, die-cutter, stamping mechanism, and output section. It offers uninterrupted feeding and output, alongside advanced electrical controls.
Specification
Model: ECOO-TDS800
Sheet thickness: 0.2-2mm cardboard E flute corrugated paper
Max. Sheet Size(mm): 800x580
Min. Sheet Size(mm): 310x310
Max. die cutting size(mm): 790x570
Max. stamping size(mm): 790x520
Inside chase size(mm): 940x610
Height of cutting rules(mm): 23.8
Inter-platen distance(mm): 51.5
Max. pressure: 200 tons
Min. gripper margin(mm): 8
Max. machine speed(sheets/hour): 7000
Max. stamping speed(s/h): 5000
The thickness of stamping plate(mm): 5(optional 4+1)
| Model | ECOO-TDS800 |
| Max. Sheet Size(mm) | 800x580 |
| Min. Sheet Size(mm) | 310x310 |
| Max. die cutting size(mm) | 790x570 |
| Max. stamping size(mm) | 790x520 |
| Inside chase size(mm) | 940x610 |
| Height of cutting rules(mm) | 23.8 |
| Inter-platen distance(mm) | 51.5 |
| Max. pressure | 200 tons |
| Min. gripper margin(mm) | 8 |
| Max. machine speed(sheets/hour) | 7000 |
| Max. stamping speed(s/h) | 5000 |
| The thickness of the stamping plate(mm) | 5(optional 4+1) |
| Sheet thickness | 0.2-2mm cardboard E flute corrugated paper |
| Feeding pile height(mm) | 1300 |
| Delivery pile height(mm) | 1000 |
| Electric heating system | 10 zones |
| Stamping rolls | 2 longitudinal and 2 transversal |
| Min. foil width(mm) | 40 |
| Foil reel core(mm) | 25(1") 76(3") |
| Mine Motor(kw) | 7.5 |
| Total power(kw) | 40 |
| Air supply | 0.8-1.0 MPa, ≥0.6cbm/min |
| Overall dimension(mm) | 4900x2000x2000 |
| Weight of machine(tons) | 15 |
Feeding Unit
• Pile tray with a handle allowing manual lateral correction of the pile during production
• Stream-wise feeding system with the highest speed of 120 sheets per minute
• 2 suction cups each for lifting paper, 2 suction cups for moving paper
• Height and angle of suction heads are easily adjustable
• Electronic safety devices preventing feeder pile from over ascending
• Micro-adjustment is available for transversal positioning of pile table
• Precision double-sheet detector
• Easy changeover of pull and push side guides simply by turning a bolt without the need to remove and replace the complete side guide
• 2 front guides with micro-adjustment and the side guide is adjustable by wheel handle
• Photo-electric detector with automatic stop system on feeding table in case of paper jam
• Separate drive controls of the feeding unit & the main machine for easy make-ready
• PLC and electronic cam for timing control
Die cutting Unit
• Siemens main motor controlled by Schneider inverter control
• Micro-adjustment of cutting force by worm gear driven by motor and controlled by touch screen
• The pressure accuracy can be up to 0.01mm
• Crankshaft made of 40Cr steel
• Machine frames made of Q235-A Steel, upper and lower platens made of QT60 ductile iron with resin-coated sand with Meehanite Die Cast Iron Technology
• Cutting chase turn-over device
• Overload protection device with torque limiter for the highest safety of the operator
and equipment
• 7 sets of gripper bars with grippers made of lightweight and durable aluminum
alloy with ultra-hard coat and anodized finish ensures accurate and consistent
paper registering
• After a long run test and delivered in pairs, the main gripper, chain from Subaki,
Japan
•High-pressuree index drive system for gripper bar positioning control
• Pneumatic lock-up and release of cutting chase
• Centerline system for quick job changeover
Stamping unit
• The 2 longitudinal and 2 transversal hot stamping axes fully meet the customer's hot stamping needs for products.
• The uniform heating of 10 areas enables the product to show a more uniform hot stamping effect.
• PLC control servo system.
Delivery Unit
• Safety photo-electric devices preventing over-ascending and over-descending of delivery paper pile
• Adjustable depressor brush helpsunloadg paper from grippers andpileg up paper
• High pile design up to 1020mm
• Automatic auxiliary belt table available for non-stop delivery
• Feeder movement and speed control can be adjusted in the delivery unit
Electric Parts, Operator Interface,e, and Safety Detector
• The high-speed Japanese industrial Omron PLC system
• Omron operator interface with touchscreen
• Omron Electronic cam switch and encoder
• Electronic detectors, micro switched and photo-electric cells controlled by PLC on the entire machine
Automatic Lubrication System
• Automatic oil pump and distribution system for the entire machine with a preset timer
• Lubrication oil distribution for gripper chains with individually controllable valves for each chain
Safety Devices and Quality Approval of Components
• All electronic and electrical parts are CE-approved
• Overload protector for the protector and equipment
• Gripper chain clutch for the protection of gripper bars
• Emergency stop buttons on the entire machine for quick and easy access
Packaging And Shipping
FAQ

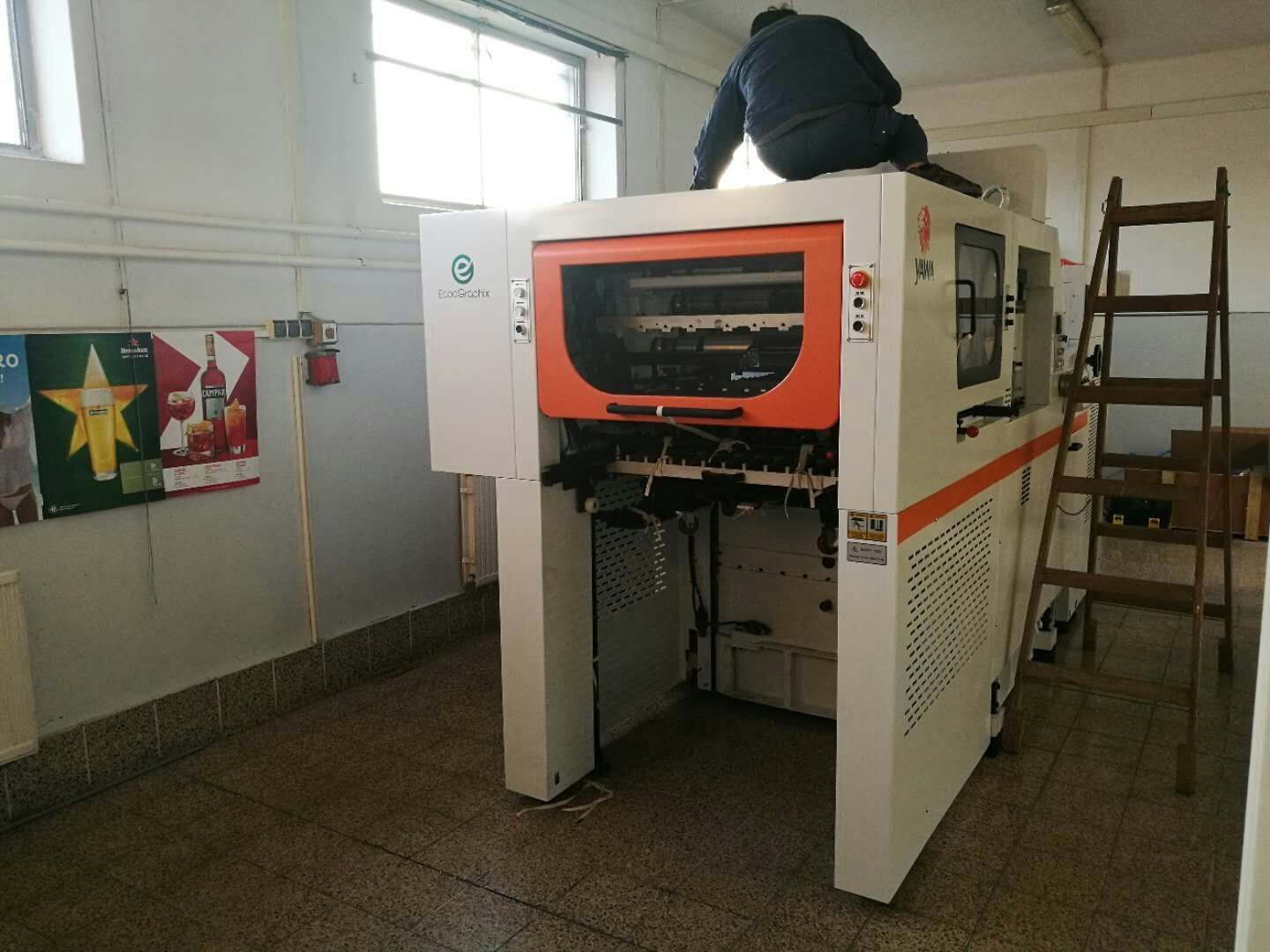

Q: What about the Installation and after-sales technician support?
A: Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. If you have any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and the EcooGraphix technical service team supports these installations remotely with regular onsite visits.
These end users' Printers all run the CTP systems with satisfaction due to our robust quality, seamless remote service, thorough training, and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle with installations, training, and after-sales service. We guarantee your satisfaction.
