Here EcooGraphix & Winbosc bridges the gap between the end users, the brand owners and the label printers enabling them to print on demand. EcooGraphix & Winbosc Printing Press tilizes the PiezoDOD inkjet print head technology that enables it to print high quality labels at 600*600DPI native resolution at speeds up to 70m/min and up to 330mm of print widths, delivering the expectations of a label printer in terms of lowest total cost of ownership and fastest return on investments.
Digital is the future, so is the Digital press, it comes with the power of printing short to medium runs very effectively and economically, additionally featuring great value of personalization, variable data and security printing in real time production at one go.

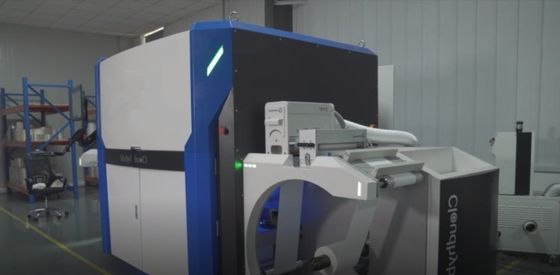

| ECOO RG PLUS Digital Label Printer Machine | |
| Model | RG PLUS |
| Max. Width | 330mm |
| Printing speed | 50-75m/min |
| Substrates | 20-400 micro(Label paper supported, other materials need test) |
| Color | CMYK + White/ Orange/ Purple/ Green |
| Printing Width Available | 216/ 324mm |
| File format | PDF, PDF/VT, TIFF, JPEG, BMP & other data base files |
| Printing Technology | UV-Piezo DoD-inkjet |
| Resolution | 600*600dpi, 600*1200dpi Native, 4 level gray scale |
| Ink curing | Inter UV-LED Pre-curing and Full curing by UV-LED |
| Unwinder diameter | Max. 700mm, Core 76mm |
| Rewinder diameter | Max. 700mm, Core 76mm |
| Other accessories | Flexo Stations, Cold Foil, Lamination, Die cut with matrix rewind&back scoring, slitting assembly, web cleaner with antistatic, corona treater and web guide |
| Dimension | 4200 x 1900 x 1800mm |
| Weight | About 3500kg |
| Operating environment | Temperature: 20ºC-25ºC, Humidity: 50%-70% relative humidity |
→ → → → → → Features ← ← ← ← ← ←
♠ 7-color digital printing, covering 95% of Pantone colors
♦ New upgraded design, simple operation
♣ Fully automatic integrated program to improve efficiency
♥ Built-in quality inspection device, real-time color inspection and quality control
♠ Support remote operation and maintenanc
♦ Upgrade printing control software to optimize production process
→ → → → → → Application & Technology ← ← ← ← ← ←
RG PLUS can print most of label materials, such as Paper, Kraft, Wine Label, PET, PP, Washi Tape, Metalized Material, Aluminum Foil…
→ → → → → → Producing And Packaging ← ← ← ← ← ←
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
→ → → → → → FAQ ← ← ← ← ← ←
Q1: What are your main products ? A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on. You can get the equipment and consumables all in one and no worry about the after-sales service from our company. |
Q2: Where is your factory ? A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory! |
Q3: How long is the lead time ? A: The lead time is normally 30 days. We can accelerate for emergency cases. |
Q4: Is there any certification for your machine ? A: Yes, all our machines have been certified by SGS and CE. |
Q5: How long is the warranty period ? A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts. |
Q6: What is your normal payment term ? A: Normally, 30% TT deposit, 70% before shipping, or LC at sight. |
|
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction. |
