600dpi 25-60 L/H Sand Type Ecoo 3D Printer S800
※ Introduction

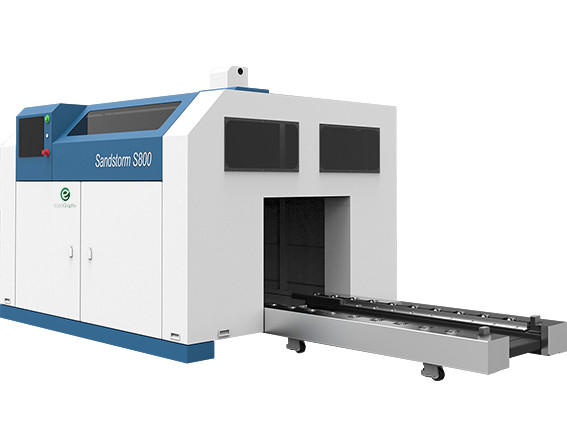

Sandstorm S800 3D printer, including its backbone hardware, mechanical design, drive program and host system, is totally developed and produced by EcooGraphix. We hold the key technology of sand type 3D printing.
※ Specifictions
ECOO 3D Printer Machine Specifications
Model
S800
Job Box
Volume Normal size: 800x500x400(160L); Limited size: 900x600x400
Layer Thickness
0.15-0.5mm
Build Speed
25-60 L/h
Print Resolution
600DPI
Motion Control Accuracy
± 3µm
Product Accuracy
± 0.03mm
Max. Consumption
8KW
Consumable
Sand, resin and curing agent
Customization Supported
Supported
Demension
5200 x 2200 x 3000mm
Weight
2.8T
| ECOO 3D Printer Machine Specifications | |
| Model | S800 |
| Job Box Volume | Normal size: 800x500x400(160L) Limited size: 900x600x400 |
| Layer Thickness | 0.15-0.5mm |
| Build Speed | 25-60 L/h |
| Print Resolution | 600DPI |
| Motion Control Accuracy | ± 3µm |
| Product Accuracy | ± 0.03mm |
| Max. Consumption | 8KW |
| Consumable | Sand, resin and curing agent |
| Customization Supported | Supported |
| Demension | 5200 x 2200 x 3000mm |
| Weight | 2.8T |
※ Features
Tailor made for customer
Self- produced print head and electronic control drive system, available with 256, 512 series of print head for users to choose. To improve the printing efficiency, the quantity of print head, DPI resolution and size of ink droplet can be tailor-made according to the requirement of customer.
1µm precision
The main motion framework adopts linear drive combination of linear motor and raster ruler. And the precision of raster ruler reaches up to 1µm, which reduces the volume of product and improves the reliability, speed and precision of motion.
25 seconds/layer building speed
With 25 60Lh building speed, t0.3mm product accuracy and the printing time for one job box within 12+2 hours, the performance achieves the top level of international sand type 3D printer, and the sanding speed is higher than any product of the same model.
Consumables-free fresh sand processing system
Adopt CFD calculation method to optimize the sand processing system. which makes consumables like filter not be needed during sand processing, achieving energy conservation and emission reduction.
Steel frame
Adopt steel frame to make the overall rigidity, shake proof and fatigue life improve a lot, and the standalone electronic control cabinet brings faster disassembly, easier installation and maintenance.
※ Details
※ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
※ Certificates
※ FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency cases.
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
Q7: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
